I have a small collection of interesting (to me!) sewing machines. I didn’t really intend to start collecting, but once I had a few, and told people about them, I was offered more. And eventually, as I learned more, I started buying one here or there. But I figure I’m just the caretaker of these things for a while.

The machines are listed on this page in “acquisition” order, intermixed with various sewing machine adventures or experiments. There’s also a pictorial index of just the machines, ordered by age, which might be easier on the eyes. (A similar index, also by age, only includes machines I currently own.)

Most of my machines can sew. The goal is that they should all do that. I try to use them all occasionally, or, in the case of the very old ones, at least once. I sew a bit, but not well, and not nearly enough to justify more than one machine in the house. But I enjoy the cleverness and quality that went into their invention and design. Early sewing machines live at an interesting intersection of history, aesthetics, precision engineering, and domesticity, all of which I find compelling. I think of them as kinetic sculpture, or at least kinetic industrial art.

Statistics: As of September 2020 I have 35 complete sewing machines. Most of them can sew, a couple are a work in progress, and a couple is are missing a shuttle and bobbin. Maybe someday. They’re all between about 50 and 160 years old. Half are from the 1800s, 2/3 are over 100 years old. Ten are treadle machines, 13 are hand cranks, and nine are electric. Twelve are floor-standing machines. (That’s a lot of floor space!) Three are missing a power source – I just have the “head”.

Oh, and by way of thanks, and to give credit: the folks on the Victorian Sweatshop forum have been really friendly and helpful, as have the members of the TreadleOn mailing list. If you’re interested in old machines, those are the places to go! There are also a number of manufacturer-specific groups full of lots of good information at groups.io, and also, as much as I hate to admit it, on Facebook. (The trouble with FB is that the searching for older information is almost impossible. It’s all focused on “now, now, now”.)

If you want to ask about anything here, or just make comments, drop me a line at pgf@foxharp.boston.ma.us . (But if you have questions about your own machines, you’re probably better off asking at one of the places I mentioned above. I’m not an expert, and only know my own machines well.)

The pictures are all clickable for larger versions. And if you want to skip the text, and just look at pictures, click on any picture and then use the arrows (or click on either half of the larger image itself) to navigate.





Sewing machine background and trivia





1916 Singer 29-4 Leather Patcher

written January 2018 [index] [index by age]


I purchased my Singer 29-4 (s/n G4763444) in June of 1998 from the owner of The Village Cobbler shoe repair shop in nearby Lexington, Massachusetts. It was a spare machine, stored at home in his cellar. These machines were built between 1896 and 1922. Mine is from roughly 1916.

It’s an interesting machine, and not only for its air of steampunk authority. The arm containing the bobbin is designed to be slender enough to fit into the toe of a boot. The feed mechanism isn’t implemented with the usual feed dogs, which would rise from under the presser foot to pull the material forward. Rather, the presser foot lifts and “walks”, dragging the material underneath on its backward stroke. 29-4_2.jpg 29-4_3.jpg

In addition, the presser foot can be rotated 360 degrees, to allow sewing in any direction without turning the material or object being sewn. The thread runs down through a hole in the center of the needle bar, so it doesn’t get twisted up when the presser foot rotates. 29-4_1.jpg

The only significant repair I’ve made was to the bobbin “case”: a needle tip broke off when I ham-fistedly tried sewing something much too heavy, and the tip was dragged down beside the bobbin where it jammed and caused score marks in the cast iron hole surrounding the bobbin. This scoring snagged the thread as it passed under the bobbin, and the machine would no longer sew. The fix involved emery cloth, and JB Weld, and more emery cloth, in order to smooth out the walls of that hole.

29-4_4.jpg 29-4_5.jpg 29-4_6.jpg

Someday, I’d like to build a replica of the table accessory that Singer used to make. 29-4.jpg

Someone asked me for the dimensions of my 29-4’s drawer, because they wanted to reproduce it. Those measurements are here.

updated March 2020, while hiding from the novel coronavirus

I decided I finally needed to do something about not having a sewing table for the 29-4. I use it often – camping equipment, repairs, heavy materials – and balancing the work on just the skinny snout is often a pain, and unnecessarily difficult. I got the machine in ‘98, and I’ve wanted a table ever since.

I was lucky that my urge to make the table coincided with having on hand some pieces of a rolling kitchen island cart that I’d salvaged from someone’s curbside trash. (Hey, solid panels are hard to come by! And I didn’t want to use plywood.) One of the cabinet doors that I’d saved was a dandy size for my table. You’ll notice some extra useless holes in my finished table – they’re inherited from the role as kitchen cart.

29-4_table_13.jpg 29-4_table_14.jpg

I started with measurements from a friend on the VSS forum, adjusted them, made some mistakes, readjusted, but in the end – it turned out well. I used a little furniture oil to finish it, but I’m so happy to have it that I don’t really care what it looks like!

29-4_table_10.jpg 29-4_table_11.jpg

A couple of details: The little twist levers that hold the table in place need to be positioned so they don’t contact the moving bits of the bobbin driver on the bottom side of the arm.


And about the end that hooks onto the perch points on the machine: I didn’t want to use anything that would wear or damage the paint on those points (at least not too much), so that ruled out steel or aluminum, which I think was what Singer used. I thought of using wood strips, but eventually realized a piece of stout leather would do the job. (I only had faux leather – don’t tell anyone.)





c.1969 Singer Fashion Mate Model 237

written January 2018 [index] [index by age]


This portable Fashion Mate 237 (s/n ME167737) was purchased by my mother, Connie Fox, in 1969 or 1970, replacing the much older black Singer she owned before. (I wish I knew what model it was that she replaced! Piecing together memories, I think it was likely a model 66) Her 237 came to me in 2003. The ME prefix on the serial number shows this was made in Monza, Italy – I believe all 237s were made there between 1968 and 1972.

The 237 was originally in a portable carrying case, which I discarded, sadly and stupidly, when I got the current cheap cabinet. Its potential future value didn’t occur to me at the time.

I don’t recall ever needing to repair the 237, in my youth, or recently.

I’ve been told that the 237 can be fitted to a treadle. That may be, but I think my mother would zig-zag in her grave if she learned that I’d removed a perfectly good electric motor in order to turn the machine into something her mother might have used! :-)






c.1900 Standard Rotary

(Gone! No longer mine.)

written long after the fact, in August 2018 [index] [index by age]


I recently remembered that I almost started collecting truly “old” machines many years ago (2011), but for some reason either I didn’t have the time, or the machine that I happened on didn’t quite press the right buttons, or who knows what?

Anyway, the story was that friends of mine had picked a lovely Standard Rotary off the curb, with an eye toward refurbing it. I believe they got as far as refinishing one drawer front before losing interest. So they gave it all to me. I was fascinated, but in the end, after cleaning it up just a bit, decided against keeping it. I gave it away on a local town mailing list, to someone who was clearly going to take good care of it. (The next machine I got, my 201-2, came from that very same list, six years later. :-) I probably only owned the Standard Rotary for a month or two.

From the looks of it, and from what I’ve now learned about the machine, and the Standard Sewing Machine Co., it was probably made in the late 19th century – the serial number (57930) is relatively low. The company was one of many that started up after the early machine patents all expired, making sewing machines much cheaper to build.

standard_1.jpg standard_2.jpg standard_4.jpg standard_5.jpg standard_6.jpg standard_7.jpg

I love the lack of any cabinetry below the top. The wooden drawers ride on a delicate framework of cast iron.






1941 Singer Model 201-2

(Gone! No longer mine.)

written January 2018 [index] [index by age]


I don’t know much about this machine (s/n AF787058). I received it as a “giveaway” from a member of a local town email list in early November of 2017:

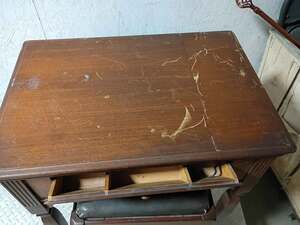

“Hi, for you tinkerers out there I have a beautiful singer 201 that possibly needs a new motor. Would love to have it go to a good home rather than scrapping. It starts out sewing fantastically and then slows to a crawl. Have oiled and greased it but don’t have the energy to go further.”

The donor also said they “bought it at a yard sale down the street a few years ago”.

The cast-iron 201 was built (with various configurations of motor and other details) between 1935 and 1954. (A different looking aluminum machine took over the model number from then until 1962.) This machine is from roughly 1941.

The finish isn’t perfect – there are some chips in the japanning, and the shellac is crazed in some large areas. I haven’t yet detected a problem with the motor. The machine is gorgeous to hear – really. There’s no belt, because the motor drives directly through a worm gear drive, and the overall tone while running is just… different… than a belt drive machine.

Repairs: As part of a thorough cleaning and oiling, I replaced the motor grease wicks with new, and replaced all the grease with Vaseline petroleum jelly. Sadly I broke one of the wick’s spring clips while removing it, and fashioned a crude repair to make it work.

201-2_1.jpg 201-2_3.jpg 201-2_4.jpg 201-2_5.jpg

updated October 2019

The 201-2 is a truly fantastic sewing machine. It sews beautifully, starts smoothly and slowly, and has a lovely sound to it. Some say it’s the finest machine Singer made, and this was an excellent example of the model. I sold it about 6 months ago because I really had no space for it, and I regretted it almost immediately, But I really did need to sell something – I had started having to stack machines on top of one another. I hadn’t used the 201 in a while, and it “didn’t fit my collection”, so it got the axe. But it turned out that the guy that bought it was essentially running a chop shop – he didn’t even want the cabinet, and was going to toss it, and ship the head overseas somewhere. Sigh – I didn’t think it was going to literally get the axe.

So, I’ve since gotten another one (also free), and while it sews well, it’s a bit of an ugly duckling compared to the one I let get away. We’ll see how much I use it. If a lot, I’ll get a nicer one. If never, I’ll let it go too…





1916 Singer Model 66-1 Treadle

written January 2018 [index] [index by age]


I was given this Singer Model 66 (s/n G4620412) by my friend Scott in late November of 2017. Here’s what he wrote about it:

The Model 66 was purchased by my grandfather, Joseph N. Merchant for his bride, Gladys H. Merchant (née Shufelt) in 1918 as a wedding present. They lived in Worcester MA for ~30 years, he was an engineer on the Boston and Worcester RR, she was a homemaker. They moved to Allston in the early ’50s and she worked at Raytheon in Allston before retiring. She sewed curtains, dresses, pants, as a regular event. They moved to Framingham in the early 60s and she continued using the machine as needed or requested. My grandfather passed away in the late 70s and she stayed in her house until her last year, 1988. The machine was always covered with a fitted cloth cover she made for it.

The machine was remarkably complete: all of the original attachments were still in the drawers, and all of the broken cabinet trim had been saved.

The Singer model 66 was made in various forms from 1902 to 1956. This treadle model was built, decorated with a couple of different decal patterns, from 1902 to 1923. This particular machine is from roughly 1916.

I “restored” the machine, which had gotten very old looking, and which was no longer operational. The whole process took about two weeks, working a few hours a day.

66_12.jpg The head itself was extremely dirty, and while it could be turned by hand, it was extremely difficult – enough that there was a worry of breakage. The machine was cleaned with sewing machine oil, partially dismantled, parts freed up, lubricated, and finally waxed (pure carnauba) and oiled again. Some damage to the decals occurred, mainly in the areas that were originally dark green. Most of the dark green was already missing, but there were more gaps after I was finished than before.

66_1.jpg 66_2.jpg

The cabinet had become stained and discolored, and the finish somewhat crazed. 66_11.jpg The top “working” surfaces were in relatively good shape, structurally, though there was some delamination of the veneer on a few of the edges. The drawers themselves were in good shape. (One had been previously repaired, since it clearly has a replacement knob.) The drawer cabinets were in bad shape: the veneer on all of the large surfaces had begun separating, and splitting, anywhere from 3” to 8” from the bottom of the chest. Many of the add-on trim pieces had already fallen off, but had been (thankfully!) saved.

66_3.jpg 66_5.jpg

I completely disassembled the cabinet, anywhere there were screws to allow it. This made cleaning/repairing much easier. This picture was taken just before I began reassembly:


The veneer on the drawer sides was all reattached using Elmer’s woodworker glue and lots of clamps. It was repaired without further separating it, using a hacksaw blade to spread the glue into the narrow space made accessible by gentle lifting of the veneer. Loose trim pieces were completely removed, and then all the trim was reattached, again using the same glue, and cushioned by padded blocks when clamping. 66_15.jpg

The finish on all the wood surfaces was refreshed with Howard’s “Restor-a-Finish” (mahogany color), applied using steel wool. The product is a combination of strong cleaner and furniture stain, with solvents strong enough to soften old finishes. The steel wool helps with the cleaning process, of course, and also smoothes off rough edges of any imperfections (scratches, gouges) in the finish. After the Restor-a-Finish treatment, the cabinet pieces were oiled with Watco’s “Rejuvenating Oil”.

The treadle irons were cleaned with rags and sewing machine oil. A few pieces that were originally chromed (or nickeled?) were cleaned up with steel wool to remove rust. A few small brackets had lost all of their plating, and had rusted. These were cleaned and sprayed with lacquer.

66_7.jpg 66_8.jpg 66_9.jpg 66_10.jpg

I’m so pleased with how it all came out, that I have to include just a couple more “before” pictures, for comparison:

66_20.jpg 66_21.jpg

The only parts missing from the machine or cabinet were two small pins, which are designed to keep the top drawer of the cabinet from pulling out too far. The pins fit in two small holes in extensions of the drawer sides, and their lower ends drop into milled channels in the cabinet after the drawer is inserted. After seeing a picture of the pins in a vintage parts list, I was able to make new pins from a pair of common nails, using my drill press as an ersatz lathe. 66_13.jpg 66_14.jpg





c.1968 Singer Featherweight “White” Model 221K

written January 2018 [index] [index by age]


This cute little Singer Featherweight 221 White sewing machine (s/n F 198055, and more specifically, a model 221K7) was owned by Julia’s grandmother, Julia Spain Banta. It came to us in late December 2017, via Julia’s parents who also used it for many years. When they learned recently that I had a small sewing machine collection, they gave it into our care. The machine is in very good shape. The case, too, is in good condition, with just a few scuff marks.

221K_1.jpg 221K_2.jpg 221K_5.jpg 221K_6.jpg

These machines are called the “White” Featherweights, but Singer seems to have referred to them as “Pale Turquoise”. In practice, people thought of them as white, or mint green. It’s hard to capture the color in a photo, but putting a white sheet of paper in the shot helps: 221K_4.jpg

The “white” K7 machines were only made between 1968 and 1971 at the Kilbowie factory in Clydebank, Scotland. (The black predecessor machines, with some differences in design, were built in various places starting in 1933.)

The serial number is a bit of a mystery: “F 198055”, with a clear space between the ‘F’ and the digits. If that number was truly just “F198055”, then it would refer to a model 15K machine, made in 1920. In addition, these models are supposed to have serial numbers starting with “FA” or “FB”.

221K_8.jpg My pet theory (without any concrete basis) is that the second character on the serial number stamping machine at the factory failed, and that this sewing machine is actually an FA or FB machine. This is partly reinforced by something I found, where someone had reported a machine “with a SN of F (then a verrry faint ‘A’) 131629”. If the ‘A’ punch was already failing when their machine was made, it might have failed completely by the time mine was made. By the time the mistake was discovered, it may have been way too late to fix, on way too many machines. There are other mentions of this class of machines with seemingly out of place numbers as well, though I don’t know whether they all start with ‘F’.

Repairs:

In May of 2018 we were given Julia’s grandmother’s first Featherweight, a black model from 1947. They make a nice pair.





1921 Willcox & Gibbs Automatic Silent Sewing Machine

(Gone! No longer mine.)

written late January 2018 [index] [index by age]


This is the first machine I’ve bought specifically to add to my collection. Willcox and Gibbs made and sold this machine, with a few variations, from 1858 through at least the 1930s.

Obviously it has a curious shape (from the back it looks like the letter G – the story is that this is related to the inventor’s surname), but in addition it sews a single-thread chain stitch rather the more common two-thread lock stitch. (Which is to say, it has no bobbin.)

I just got it recently (late January, 2018) today, so I don’t yet know all that much about it. It has serial number A666108, which means it was made 1921.


The price was right because a few things are wrong with it. Some I knew before buying (ebay), others I discovered after it arrived.

First, the spool arm is broken (and missing), and the connecting link arm for stitch length control is broken (but all there). wg_broken_arm.jpg wg_broken_link.jpg wg_broken_link2.jpg I knew about both of these when I bought the machine, so they’re okay. I think I can jury-rig a spool arm of some sort, and I may be able to repair the link, but in the meantime the stitch length is still adjustable from underneath – it’s just not convenient.

In addition, the stitch plate, i.e., the platform on which the cloth rests while sewing, has been replaced. I should have seen this in the pictures before buying – somehow it never occurred to me that the piece wasn’t original. However, every picture of these machines that I’ve found shows a stamped rectangular plate, probably nickel plated, and engraved with a stitch/cloth/needle table, along with other labeling, like this one: wg_real_stitch_plate.jpg

My machine, however, has a relatively crude unplated, unpolished steel plate. Milling marks are visible on the underside. There’s no engraving, and I believe it’s smaller than the usual plate. Despite the milling on the underside, this plate is much thicker than it should be, which prevents the feed dogs from ever protruding through their slot. The first picture shows the dogs in their fully raised position.

wg_clothplate_1.jpg wg_clothplate_2.jpg wg_clothplate_3.jpg But the real problem with this stitch plate is the opening for the feed dogs. Normally, with the presser foot down, resting on the dogs, the dogs will break contact with the material being sewn as the retract through the plate in order to move to the rear of the machine before coming up for another shove. But with this plate, with its gigantic hole, the presser foot simply descends along with the feed dogs, never losing contact. Useless.

And finally: the axle on which the hand wheel turns is bent. Not much, but noticeably – it wobbles a few degrees when turned. It will certainly vibrate if it spins, so that will keep speeds down.

So it’s pretty clear that this machine was dropped – parts are broken, the stitch plate may have been bent and replaced, poorly, and the hand wheel axle is bent. But it’s also clear that it’s been well used, and the damage all seems old, making me think it can probably sew again someday despite its injuries. We’ll see.

updated December 2019

After hoping I’d find a replacement cloth plate for the better part of two years, I decided it was time to get it out of house so it wouldn’t annoy me anymore. :-) Besides, I have four other W&G machines now, so while this was my first, and had some nice aspects, it was kind of redundant. It went to someone who just wants a shelf decoration. Perfect.





1914 Willcox & Gibbs Automatic Silent Sewing Machine

written February 2018 [index] [index by age]

Yes, this is W&G machine number 2.


Soon after getting my first W & G chain stitcher (above), and realizing that it has some “issues”, another one (A592642) came up for sale nearby on craigslist. Not only did this one not have any of same problems my first machine had, but it came with case, motor, foot controller, and a slew of accessories and needles. (Never mind that just the day before I’d ordered new needles from ebay! :-)

A592642-01.jpg A592642-03.jpg A592642-04.jpg

The decals aren’t in as good shape as the first machine’s, but I was sort of thinking it might be a parts donor for the first, and that between them I’d end up with at least one excellent machine. A592642-05.jpg A592642-06.jpg A592642-07.jpg A592642-08.jpg A592642-09.jpg

updated December 2018

After buying my 1937 electric cabinet W&G machine, I didn’t really have a reason to keep this motor and base in my collection. I had repaired and rewired it, and I was able to sell it to someone who needed it. So all that’s left from this purchase is the 1914 machine itself, and the accessories that came with it.

After selling the electric base this machine came with, I moved it onto my hand-crank base. The lead picture on this blog entry shows it in that form. It now sports a replacement crank handle – which really is for a Singer Model 20. It’s small, but it will do, for now.





Swapping parts between my Willcox & Gibbs machines

added February 2018 [index]

Alas, it seems that not all W&G chain stitchers are created equal. I had been hoping to swap some parts from this machine to my first: the first machine has a homemade stitch plate, is missing the thread spool pin and arm, has a bent main shaft, and much of the nickel plating on the hand wheel is worn off. But in the end, only the spool pin and arm are compatible:





Willcox & Gibbs foot controller repair

added February 2018 [index]

The foot controller for my second chain stitcher was completely dead. I’d found a good write-up on repairing them, but sadly, that controller was very different on the insides than mine.

My controller consists (essentially) of two coil resistors and a large flexible copper plate. The copper plate makes contact with successive points on the large resistor elements, as the pedal is depressed.

A592642-wiring-01.jpg A592642-wiring-05.jpg A592642-wiring-06.jpg

The resistors consist of a ceramic tube, wound with very thin wire. That thin wire isn’t what the copper plate makes contact with – it wouldn’t be strong enough, and any arcing would burn through it. To provide appropriate contact points, the tubes (and the thin wire winding) are each circled with 8 pieces of thicker copper wire, spaced along the length. These are just loops, with the ends tightly twisted together. These “wraps” are strong enough to act as an electrical contact with the copper plate, and are tightly held against the thin resistor wire. The whole tube was coated in a gray paste or paint which has dried and flaked off. My guess is that this was meant to keep the corrosion at bay.

Sadly, the copper wire “wraps” on my ceramic tubes were no longer electrically connected to the thin resistor wire underneath, due the obvious corrosion. I could put an ohmmeter on any area of the resistor wire, and get connectivity to the broad copper bands at the ends of the tubes, but there was no connectivity at all to any of the copper wire “wraps”. (The total resistance of each tube, BTW, is about 100 ohms, and the resistance between adjacent copper contact points is roughly 10 ohms..)

In the end, I carefully untwisted, removed, cleaned, and reinstalled all 16 of the copper wire wraps, and also cleaned the layers of fine wire underneath while it was exposed. Doing this restored all the right connectivity. Good as new!

A592642-wiring-04.jpg A592642-wiring-08.jpg





Willcox & Gibbs Needles

added May 2018 [index]

My 1914 machine came with a lot of needles. Thirty-two no.2 needles, ten no.4 needles, etc. Even one no.3-1/2 needle. Curious about their relative sizes, and prompted by some discussion on a Facebook W&G group, I took some measurements and a picture. First, shaft diameters:

Then a picture. I drilled a series of 5/64” holes in a piece of wood, and inserted a needle in each. These are just the W&G needles, sizes 4, 3-1/2, 3, 2, 1, and 0. Sadly, I forgot I had the Groz-Beckert needles until after I’d already drilled the holes and taken the picture. You’ll have to trust me that the hole in the G-B needle is even longer than that of the no.4 – it would definitely be the easiest to thread of the bunch, but its diameter is more like a no.3.

w_g_needles.jpg w_g_needles_zoom.jpg

And here’s a picture of the Groz-Beckert packaging for the GB90 needles. (Click to enlarge, as always.) groz-beckert.jpg





Willcox & Gibbs Tensioner Maintenance

added February 2019 [index]

This 1914 machine has always had trouble sewing at the shortest stitch lengths. It hasn’t bothered me much, because I really have no need to ever sew anything at higher than 12 to 15 stitches per inch, and the machine sews fine in that range.

But it’s been on my mind to investigate, especially after another machine (my 1937, acquired later) had the same problem. So I did investigate, and did solve the problem – it was a simple matter of adjustment.

I’ve documented that adjustment, as well as how to do a full disassembly and reassembly of the tensioner, on my “Working on a Willcox and Gibbs Automatic Tensioner” page





1871 Singer “New Family”

written May 2018 [index] [index by age]


I had told myself, since our house is out of convenient corners with extra floor space, that I shouldn’t collect any more treadle or cabinet machines. But when I happened to see this machine on Facebook Marketplace, I had to go take a look.


It seemed pretty undervalued (even with my rudimentary knowledge), and sure enough, it turned out to be an early “New Family” machine. The “New Family” model was created by Singer in 1863, and including a name change to “Model 12”, lasted until 1902 – it was the first mass-market mass-produced sewing machine. Mine (s/n 618146) was made in 1871.

One nice feature of these machines is the type of shuttle mechanism they use, called a “transverse shuttle”. If one thinks of a lockstitch sewing machine as being a sort of one-threaded loom, then this is about as close as one can get to that mental model. The shuttle is boat-shaped, with a pointy end, much like a loom’s shuttle. transverse_shuttle.jpg Also like a loom’s shuttle, it carries a narrow cylindrical spool of thread (the bobbin). It moves linearly back and forth beneath the presser foot: the needle comes down, and retracts somewhat to leave a small loop of thread. The shuttle passes through the loop from left to right, and the needle retracts the rest of the way, forming the stitch. The shuttle then retreats to the left, and is ready for the next stitch.

My machine’s cabinet is in very good shape. That’s likely helped by it being made from solid boards – no veneer. The “coffin” looks like a simple box cover, but actually unfolds in a very clever way to make a large sewing surface. newfamily_1.jpg

The machine head is also in good shape for its age – the decals are very worn, but the mother of pearl highlights are all present. There’s very little rust, and the paint is mostly intact. It’s currently missing the shuttle (which holds the bobbin), so it won’t sew for the time being. The axle and wheel for the bobbin winder is also missing, as was the tension adjusting screw, but I’ve been able to get a replacement for that. Everything else seems to be there. newfamily_2.jpg newfamily_3.jpg newfamily_5.jpg newfamily_6.jpg newfamily_faceplate_1.jpg newfamily_faceplate_2.jpg

The treadle irons are rusty near the floor, but should still clean up pretty well. The original ceramic (I think) casters are both intact. I love the free form design of the irons.


updated October 2018

I was able to procure a Model 12 shuttle, and a matching bobbin winder assembly, from Helen Howes in the UK. With shipping, they cost about the same as the rest of the machine. All in the name of the hobby, I guess.

I had some trouble initially getting the machine to sew, but with lots of advice from the folks on the Victorian Sweatshop forum, I got it sorted out. It turns out the only real problem was with my replacement shuttle. There’s a springy piece of steel that runs along the side of the shuttle, which helps keep it aligned and in place during its travels to and fro. The rivet which should hold that piece in place had become loose on my shuttle, allowing the spring to catch on the underside of the feed dogs midway through the shuttle’s forward stroke. I took a video of the problem. A punch and a small hammer took care of tightening the rivet, and all was well.

Sadly, due to the lovely fold-out design of the treadle top, I can’t display the New Family on its treadle, since to open it up requires too much floor space. So I made a simple display base, and it fits on top of a bookshelf. Looks fine. That’s pictured at the top of this blog entry.

updated February 2019

I’ve been thinking of selling this machine, since it’s so hard to display properly. As part of putting an advertisement page together, I took some photos of the folding top, and realized I’d never really shown that feature here. It’s pretty cool.

newfamily_21.jpg newfamily_20.jpg

updated October 2019

I couldn’t bring myself to sell it. :-) Here are a few more pictures, simply because it’s so pretty.

newfamily_25.jpg newfamily_26.jpg newfamily_27.jpg newfamily_28.jpg





1941 Singer Model 99K Hand Crank

written May 2018 [index] [index by age]


I’ve wanted a hand crank machine for a while – partly just to try sewing on one, and partly because there are just three common ways to power a sewing machine, and I already have examples of the other two. The Singer Model 99 is closely related to the Model 66 that I have in treadle form – it’s basically identical, just shrunken a bit (1-1/2” lengthwise, 1/2” back to front), making it more portable. It was produced from 1911 to 1962 or ‘63. This one (ED197080) was made at the Scottish Kilbowie plant in 1941. The hand crank is original – there is no wear whatever on the hand wheel pulley, so it’s likely never been treadled or attached to a motor.

model99k_1.jpg model99k_2.jpg model99k_3.jpg model99k_4.jpg model99k_5.jpg

These pictures were taken after a fairly superficial cleaning – the paint was wiped down with sewing machine oil, and the prominent chrome pieces were rubbed with steel wool. The bobbin slide plate is missing, and I’m hoping to find a vintage replacement. Modern replacements are available, but they look like what they are: modern replacements.

Of course I’ll need to find, or build, a base of some sort to make the machine useable. But I can afford to do a little work on it.

Later… Okay: display case has been built, the bobbin and needle plates have been replaced, and spit and polish applied. Looks pretty good!

model99k_after_1.jpg model99k_after_2.jpg model99k_after_3.jpg





1947 Singer Featherweight Model 221

written May 2018 [index] [index by age]

A second Featherweight joined the family. Or, rather, it stays in the family, thanks to my generous in-laws. Like the white 221K Featherweight I already had, this 1947 black Featherweight (AH198050) also belonged to Julia’s grandmother. She must have liked it, given that she bought a second!


This one needed a little more restoration than the first – the electrical cords were worn through, the rubber foot pads had turned to goo (literally!), and there was a fair amount of dust and cat hair to clean up. But it’s a solid little machine under all that.

221-black_2.jpg 221-black_3.jpg 221-black_4.jpg

I wanted to rewire it with something that was at least a little bit “vintage”. Regular modern zip-cord didn’t seem like it would look right. I found a place that sells cloth-wrapped cord, and got some in black. (They had both cotton and rayon – I chose rayon.) The original cords had clearly failed due to lack of strain relief where they entered the controller and plug, so I used layers of shrink wrap to add protection there – perhaps too much. 221-black_rewire_2.jpg 221-black_rewire_1.jpg

The only piece that was truly damaged on this machine was the bobbin winder. I’m not sure what happened to it, but the wheel that needs to ride nicely on drive belt, in order to spin the bobbin, had been mangled: it was no longer flat, and it was no longer round. It’s made of aluminum, so it bends easily, but still – how did that happen?! 221-black_bobbin_winder_bent1.png The damage is easier to appreciate in a short movie, which shows it well: 221-black_bobbin_winder_before.mp4

Happily, fixing it was a lot easier than I thought it would be. Singer only sold the assembly as a single part number – so it seemed like it might be impossible to work on the wheel by itself. But some helpful folks that specialize in Singer Featherweights told me the bobbin winder was pressed together. (They also sold me some new rubber feet to replace the old gooey ones.)

I was able to get the wheel off the axle just by tapping on the wheel end of the axle with a small hammer: 221-black_bobbin_winder_apart.jpg

After that, a squeeze or two in the vise flattened out the wheel, and I had a couple of Craftsman sockets (both 19mm, from two different sets) that were just the right diameters to gradually work out the out-of-roundness. I forced each in turn into the cup of the wheel, again using the vise, and also did a bit of hammering on the rim to get out the remaining high points while it was still on the socket. 221-black_bobbin_winder_and_socket.jpg

Finally, I pressed the axle back in, using a large nut as a spacer to keep the wheel from getting squished while the axle went in: 221-black_bobbin_winder_reassembly.jpg

The result is way better than I expected. 221-black_bobbin_winder_unbent1.jpg 221-black_bobbin_winder_unbent2.jpg

A second movie shows the (vast) improvement: 221-black_bobbin_winder_after.mp4

Okay, then, with all that out of the way, here are a couple of glamour shots of the machine, all finished up:

221-black_after1.jpg 221-black_after2.jpg

Finally, I don’t think you can own a pair of black and white Featherweights and not photograph them together:

221-black_and_white_1.jpg 221-black_and_white_2.jpg





c.1880 Wheeler and Wilson No. 8

written June 2018 [index] [index by age]


This 1880-ish Wheeler and Wilson model No.8 (s/n 265383) is complete, it turns over (sluggishly), the cabinet is in good shape, and it has quite a few accessories, including more glass presser foot inserts. Clearly it needs work, but I’m really pleased with it. Stay tuned!

ww8_4.jpg ww8_5.jpg ww8_6.jpg ww8_8.jpg ww8_9.jpg ww8_10.jpg ww8_11.jpg ww8_12.jpg ww8_13.jpg ww8_15.jpg ww8_16.jpg

Allen Wilson was a very clever guy. He held patents for the vibrating shuttle mechanism (which his machines didn’t use, but lots of others’ did), the round bobbin and rotary hook mechanism (which his machines did use, and which many still do today), and the up/forward/down/back four-motion feed (which is still universally used today). Oh – and there’s a nice write-up on the No.8 on the ISMACS site.

… continued, October 2018

Okay, I’ve finally done an initial cleaning and oiling of the machine’s head, cleaned up the treadle irons, and refinished all of the wooden parts. I’m very pleased with the result!

ww8_22.jpg ww8_21.jpg ww8_20.jpg ww8_30.jpg ww8_31.jpg

In addition to cleaning the case, I’ve also cleaned the head enough to get it to sew. I have trouble imagining how sewing machines get so dirty sometimes. I think in the case of the old ones, it’s the oil: they would originally have used sperm oil (i.e., from sperm whales) rather than a petroleum-based oil. When the sperm oil dries, it leaves horrible, hard, brown, caked-on crud. Yuck. These parts didn’t get cleaned: it would have been hard, and the mess isn’t hurting anything. It looks liquidy in the pictures, but it’s not: it’s like hard shellac. ww8_resto_10.jpg ww8_resto_11.jpg ww8_resto_12.jpg





Restoration note:

As with my Singer Model 66, I used Howard’s Restor-a-Finish on this. I haven’t yet seen any compelling reasons not to use it, and it’s practically “wipe-on/wipe-off”. The results are perfect, for my taste. “Patina” (that’s latin for nicks, scratches, and stains, right?) is preserved, while the piece becomes living room friendly. I might not use it on fine furniture, or on something where preserving the original finish was crucial, but for a mass-produced sewing machine? Sure.

I do clean the wood first, quickly, with Windex glass cleaner and paper towels. And I apply the Restor-a-Finish with #0000 steel wool. Here are a few before/after shots:


ww8_resto_0.jpg ww8_resto_4.jpg

ww8_resto_1.jpg ww8_resto_5.jpg

ww8_resto_2.jpg ww8_resto_6.jpg

Oh – the other product that makes this stuff easy is Evapo-Rust. Just soak a rust-encrusted part in it, and all the brown flaky crud disappears. As a bonus, it’s safe, non-toxic, and can be poured down the drain when it’s used up.

Here’s the bobbin winder, which is made of a different alloy than the cast iron treadle irons, so it had rusted badly. But it’s fine now, other than still needing a rubber tire, obviously.

ww8_resto_8.jpg ww8_resto_7.jpg





1922 Singer Model 99K-13, electric

(Gone! No longer mine.)

written June 2018 [index] [index by age]


I don’t need, or even particularly want this machine (Y702893). But the bent wood case is in pretty good shape, and my 99K hand crank doesn’t have a case at all. So I bought it (quite cheaply) for the case. As it happens, the machine is in reasonable shape, though it needs badly to be cleaned, oiled, and rewired. And the controller has some dead spots, and the controller knee lever is missing, (Okay, maybe my definition of “reasonable shape” is starting to skew a bit.) I’m not sure what I’ll do with it – now that I have it, of course, my “preservationist” side keeps saying “Restore it! Restore it!”, while my practical side says “Just fix the case so you have a complete hand crank model, which is all you ever wanted.” I wonder which side will win?

99K-13_9.jpg 99K-13_2.jpg 99K-13_3.jpg 99K-13_5.jpg 99K-13_6.jpg 99K-13_7.jpg

updated November 2018

Well, in the end I couldn’t bring myself to part out the machine. So I gave it a new foot controller (the knee controller was burned out and unfixable, and the knee bar was missing in any case), shined it up, refinished the case, and sold it. It looked pretty good by the time I was done.

99K-13_done_1.jpg 99K-13_done_3.jpg 99K-13_done_4.jpg 99K-13_done_5.jpg 99K-13_done_8.jpg





1926-1950 Singer Model 20 Toy Chain Stitch (no.1)

written July 2018 [index] [index by age]


I got this cute little chain stitcher from Julia’s brother-in-law for my birthday. The Singer toy machines don’t have serial numbers, but various features on this one show that it was made in the 25 years or so between 1926 and 1950. :-) It has a little rust on the cloth plate, and the felt on the base could be replaced, but it looks and works fine otherwise.

model20_front.jpg model20_back.jpg

It’s an excellent machine for demonstrating how single-thread chain-stitchers work, since unlike my Willcox and Gibbs machines, it’s light enough to hold and operate in mid-air, and the underside offers an unobstructed view of the hook.






Willcox & Gibbs Hand Crank, with 1904 parts machine

written July 2018 [index]

w_and_g_no_1.jpg w_and_g_no_3.jpg

I’ve been on the lookout for a hand crank for my W&G machines for a while, so when this popped up on Craigslist, I grabbed it. It didn’t hurt that it was dirt cheap (relatively speaking).

The machine (s/n B544060) is quite rough (note the JB Weld and wired-on sheet-metal repair!), and a large part of the lacquer is missing on the crank wheel, but the price was right. With a little oiling it started spinning over quite nicely. I haven’t tried sewing with it, but I suspect it will be fine

The only big issue is that the crank handle itself is missing, along with the screw that holds it. Of course the missing screw is 11/64”, and 40tpi. That’s the same threads as the W&G attachment thumbscrews, and, ironically, also the same as the crank handle screw on the Singer Model 20. Maybe I can share my Model 20’s handle between the two machines! In reality, I may end up drilling and tapping the wheel for a more modern screw size.

w_and_g_no_5.jpg w_and_g_no_2.jpg

But in the end, I bought this machine not for the machine, but for the hand-crank base. It now sits under my second W&G, since I sold the electric base that that machine arrived on.

updated December 2018

The hand-crank base’s feet were shot: mushed out, brittle, and, while they would still protect a tabletop, they’d lost any stickiness they’d ever had, so the machine wouldn’t stay put on a smooth surface while sewing. w_and_g_crank_feet_1.jpg

The feet are of the “rubber plug” type, which fit into holes milled in the base. The holes are just under 1/2” in diameter, and 1/2” deep.

It turns out McMaster-Carr carries the perfect replacement, as part number 9305K32. They’re in the “Push-In Bumpers with Compressible Stem” section. They fit perfectly, and have plenty of “stick”.

The second picture shows one new foot installed (on the right), and also shows an old foot shaved off with a razor blade, before I pried the rest out with a thin-but-strong screwdriver. If you have a situation like this, and don’t have proper replacements, trimming the foot flat leaves a nicer surface for a stick-on foot than prying out the old rubber and leaving a hole. w_and_g_crank_feet_4.jpg

updated December 2018

While I still have the castings for the 1904 machine itself, most of its parts have been transferred to the 1893 machine that I got with my treadle base. The decals were good on that machine, and, let’s face it, that repair to the 1904’s needle arm lever wasn’t very attractive.





Custom Sewing Machine Display Bases

written July 2018 [index]

I’ve made several bases for machines now. I’ve used three different techniques. It’s been fun.

My Singer 99K hand-crank didn’t come with any sort of base, or case. Because I might like to travel with it someday, and room in our van is limited, I made the base as small as possible. There isn’t yet any attachment of the machine to the base – I’ll deal with that when it’s used for more than displaying the machine on a bookshelf.

I used my Kregs jig to install pocket screws to hold it together, and carved the top to match protrusions from the base of the machine. It’s barely larger than the sewing machine’s base. The holes in the ends are for one’s fingers, when picking up the machine.

bases_7.jpg bases_8.jpg

My mother’s Fashion Mate 237 originally came in portable plastic carrying case. I was dumb, and got rid of that when I found a floor cabinet for it. Now I don’t have room for the cabinet, so I again need a small base to make the machine useful. This one actually uses hinges, just like a “real” case. I did my first rabbet joints for this one. I also included an extendable “kickstand”, which does two things: it keeps the base from flipping up when the machine is leaned backward, and gives the back of the machine something to rest on.

bases_3.jpg bases_6.jpg bases_4.jpg bases_5.jpg

My Singer New Family came in a beautiful treadle stand, with a flip-out cover that forms a large sewing surface. The trouble is that when the machine is displayed in the open position, the effective floor space taken by the treadle base and surface is huge. So I needed a more compact way of putting my oldest machine on display.

I repurposed an old butcher block top, which had the necessary depth. It was pretty easy to cut with a hand-held jigsaw. The outline for the cutout came directly from a tracing of the treadle top.

bases_1.jpg bases_2.jpg





1871 Howe “Letter A”

written July 2018 [index] [index by age]


In 1846, Elias Howe invented the needle with the eye at the pointy end, and, in the same patent, the two-thread lock stitch still used by almost all domestic sewing machines today. He didn’t build machines right away, but his family did. When he finally started, in 1863 or so, he produced this machine, which is known as a “Stockwell Howe” to differentiate it from earlier Howe sewing machines made by another branch of his family. (He was in business with his two sons-in-law, who were brothers named Stockwell.)

This one sat on Facebook Marketplace for at least a month before I decided to look at it. It’s in very good shape – the seller said it came from his grandparents house. They must have taken good care of it. “Letter A” is simply The Howe Machine Company’s name for the model. The Letter B, C, and D machines were bigger and successively more industrial. The serial number (178732) dates it from 1871.

howe_11.jpg howe_3.jpg howe_4.jpg howe_5.jpg howe_6.jpg howe_7.jpg howe_9.jpg

Note that unlike most other machines, there is no wheel above the table. To start the treadle, or move the needle, one must reach underneath and pull on the belt.

There are essentially three things which must move in synchrony on a sewing machine – the needle, the shuttle or bobbin, and the feed dogs. On this machine the L-shaped needle bar is driven by the right most groove in the large drum underneath. The groove to its left drives the shuttle forward and backward under the needle. The feed dogs are driven by a much smaller eccentric cam near the left end of the shaft. Stitch length is controlled by turning the knob at the left end, to adjust how much the cam moves the feed dogs.


I tried to get some of the gunk off the undercarriage, but only succeeded in cleaning enough to make everything move smoothly. I’m sure sperm oil is to blame.


Cleaning the upper parts was more successful, as was cleaning up the base. This one qualifies for a prime living room location: howe_13.jpg howe_14.jpg

And after minimal setup, it sews!!


I made a short movie which shows the machine in action. There’s no cloth or thread, in order to show how the shuttle moves. I love that this was made in 1871.

updated September 2020

Sometime last year I was looking at the pictures, above, of the cruddy underside of this otherwise pretty machine, and decided to do something about it. I didn’t do a lot of disassembly, but was able to get almost all of the caked grime off of the big cam cylinder. It looks much better!






c.1918 Western Electric No. 2 Portable

written August 2018 [index] [index by age]


I couldn’t resist picking up this Western Electric machine (s/n A80864), which dates from 1917 or 1918. At least, those are the commonly internet-quoted dates of manufacture. I’ve not been able to find a hard reference. The machine was actually built by the National Sewing Machines company, and badged for W.E. It’s the same machine as the National Model ‘A’, or perhaps ‘A2’, introduced in 1910, and electrified for Western Electric in 1917. Perhaps Western Electric only badged it for two years.

Partly I wanted it because the decals are pretty, and fairly well preserved – I don’t have many machines with pretty decals. Plus, I used to work for AT&T, which was Western’s parent company. But it also has this crazy motor arrangement, where the motor is mounted on swivels, and its position is controlled by a spring: it can either live tucked into the machine for storage, or swiveled to where it drives the hand wheel via a friction wheel when in use. I have two friction wheels – one is the original cork covered one (at least, according to the manual), and the other is a later rubber one.

western_elec-2.jpg western_elec-4.jpg western_elec-10.jpg western_elec-11.jpg western_elec-6.jpg western_elec-7.jpg

Interestingly, about half of the old pins I found under the base couldn’t be picked up by a magnet – I believe they’re plated brass.


western_elec-12.jpg western_elec-13.jpg

The bobbin winder is also unusual – it’s driven directly from the motor by a coiled metal spring “belt”. When doing this, the friction wheel is held off the hand wheel by deploying a small arm. western_elec-14.jpg

It will need some thorough cleaning, and likely the motor needs rewiring. There is no controller or plug – I’ll have to come up with something. Too bad I don’t have the original – it was pretty cool looking, and it came with a lightbulb-like screw on the end of the wire for getting power! I guess when electricity first became commonplace, it was just for lighting: there were really no appliances yet, so this made sense. See this advertisement, and also Figure 3. (Amusingly, the advertisement also shows an electric lamp on the table. Which must be plugged in somewhere. So why not plug the machine in there too?)

western_elec_flyer.png western_elec_motor.jpg

Sadly… after a thorough cleaning, and testing, and dismantling, and diagnosing… the motor is dead. There’s a break in one of the field windings, and the armature windings seem to be shorted together. So, it’s to be a shelf queen. Oh well!

But at least it did clean up nicely! western_elec_after-2.jpg western_elec_after-3.jpg western_elec_after-4.jpg western_elec_after-7.jpg western_elec_after-5.jpg western_elec_after-6.jpg

updated December 2018

I found a motor! It was sold originally as a general purpose sewing machine motor – you could use it to convert your treadle machine to electric power by sitting this thing behind your machine, with the roller in contact with your hand wheel. The motor was spring mounted.

western_elec_new_motor-1.jpg western_elec_new_motor-2.jpg

It’s identical to the motor that came with my machine. I had to rewire it, and I even had to straighten its bent shaft (it must have been dropped), but it now works, and the machine can sew. I’m very pleased, even though the shaft still isn’t quite straight – it causes a fair amount of vibration. But it’s better than not working at all – and having the nameplate on the motor is worth a lot too. western_elec_new_motor-3.jpg





1937 Willcox & Gibbs Automatic Silent Sewing Machine, with electric cabinet

written late August 2018 [index] [index by age]


This machine is so pristine that it seems like it might not have always been with this cabinet, which shows quite a bit of wear. On the other hand, perhaps the machine is so pristine because it was protected by the cabinet. In any case, the machine is lovely, and the cabinet is very cool.

A728912-01.jpg A728912-03.jpg A728912-05.jpg A728912-06.jpg A728912-07.jpg A728912-09.jpg

updated January 2019

I just realized I’ve never taken better, indoor, “glamour shots” of this beauty. After minimal cleaning (dusting, really, is all it needed), here are some better shots of the head: A728912-10.jpg A728912-11.jpg

I’ve also repaired and refinished the electric cabinet. Here are some pictures (with a different W&G head): wg_cabinet_1.jpg wg_cabinet_2.jpg wg_cabinet_3.jpg wg_cabinet_4.jpg wg_cabinet_5.jpg wg_cabinet_6.jpg





1906 New Home “New National”

written October 2018 [index] [index by age]


I’ve wanted a dedicated hand crank machine for a while, where, by “dedicated”, I mean a machine that was specifically built to be cranked by hand, and not powered by other means. (And no, my toy Model 20 doesn’t count!). The prettiest machines of this sort are “Saxonia” machines, so named because so many came from Germany. Sadly, since they’re mostly German, there aren’t that many here in the States, and the nice ones are very expensive. So I wasn’t really expecting to satisfy my itch with a machine built practically next door, in Orange, Massachusetts, by the New Home Sewing Machine Co.


New Home only made one machine in the Saxonia style, as far as I can tell. The “model U” was made with variations from the 1880s to the 1930s. Mine (s/n 2589510) was made in 1906. The outsides had been wiped down well enough, but given the amount of gunk and crud I had to clean from… everywhere else, and from the wear on some of the decals, I’d say it was well used. Happily, not all the decals suffered, and most are in very good shape.

newnat_07.jpg newnat_08.jpg newnat_09.jpg newnat_10.jpg

Unfortunately it was missing a shuttle and bobbin, but I was able to get those, and it now sews perfectly.

Interestingly, there are holes in the portable base for a treadle belt to pass through. The holes don’t line up with the pulley groove on the crank wheel, though, so it’s possible the base and machine aren’t a properly matched pair. In any case, the base was apparently designed to sit or slide into a matching treadle base – so that the machine it held could be either treadled or cranked. An early example of modular design, I guess.

newnat_11.jpg newnat_12.jpg newnat_13.jpg newnat_15.jpg newnat_16.jpg newnat_17.jpg newnat_18.jpg





1976 Sears Kenmore Free Arm Model 1946

(Gone! No longer mine.)

written October 2018 [index] [index by age]


I got this Kenmore (technically a 158.19460) when someone on the town mailing list gave it away. Has a bunch of built-in stitches, including semi-automatic buttonholes, and, more importantly, it’s a free arm machine, which would be awfully convenient sometimes. But it doesn’t really fit in with my collection, so if I find that I never use it, I’ll probably pass it on to someone else someday.

kenmore_4.jpg kenmore_3.jpg kenmore_1.jpg

updated December 2019

Well it had been over a year since I got this machine, and I had yet to have a need for its features, so I passed it on…





c.1859 Charles Raymond

written November 2018 [index] [index by age]


This diminutive little thing (only 10” long, including the crank handle!) dates from 1859. [Edit: I’ve since realized that it could well be from 1860, possibly even 1861. But boy do I love saying “1859”. ;-) ] Charles Raymond was building inexpensive sewing machines in Brattleboro, VT. Sometime in the next couple of years he moved his company to Guelph, Ontario, to avoid pressure from the “giants” of the industry, and their attorneys. Even if he wasn’t infringing, it would have been prohibitive to defend against Singer, or Wheeler and Wilson.

The machine sews a chain stitch – the loop is caught and held until the next loop can be slipped through it. (Simple, but not as simple as the looper that James Gibbs had invented just a couple of years earlier, used in the Willcox & Gibbs machine earlier in my blog.) There are no feed dogs on this machine – instead, the presser foot is a “walking” foot. The needle holds the cloth in place while the presser foot lifts and moves forward to grab the cloth in a new spot. When the needle rises, the cloth is slid to its new position.

This style of machine, created by Charles Raymond, was copied by many small manufacturers – it was cheap to make, and very simple to use. The style became known as the “New England Sewing Machine”.

chas_raymond_4.jpg chas_raymond_2.jpg chas_raymond_3.jpg chas_raymond_5.jpg chas_raymond_6.jpg chas_raymond_7.jpg chas_raymond_8.jpg chas_raymond_9.jpg

Sadly, my machine is missing a couple of crucial parts: There’s a threaded rod/bolt that should be installed in the hole near the left end of the upper shaft. This rod would ride on a cam (not really visible in the pictures), and would cause the presser foot to do its walk.

Also missing is the bracket and spool pin which is normally mounted on top of the large rectangular needle bar at the upper left corner of the machine. The spool is mounted horizontally, and the thread unwinds directly down to the needle. Thread tension is applied by drag exerted on the spool by a spring which keeps it from turning freely. Hopefully I can recreate these parts someday.

One clue (among others) to the age of the machine is the little notch worn in the cast iron faceplate, above the upper righthand screw. chas_raymond_10.png

This means the machine probably had a tensioner setup just like the one shown in a video, from Alex Askaroff. The springy-wire part of the tensioner would have worn that notch. There are better pictures of that spool assembly and tensioner on Alex Askaroff’s webpage – specifically this one and this one.

Given the features of the casting, and the wear mark, I think it’s safe to say the machine was made in either 1859 or 1860.

[ a few days pass ]

Armed with the above assumptions and evidence, as well as a few pictures, I set out to recreate my missing parts. Here are a few of the pictures I used (in addition to those from Alex Askaroff’s site, mentioned above). These came from an ebay sale page, and are used by permission of the seller. (The machine in these photos is a clear match to Alex Askaroff’s.) chas_raymond_9261H09.jpg chas_raymond_9261V04.jpg chas_raymond_9261V11.jpg chas_raymond_9261V15.jpg

I used various bits of scrap found in boxes and drawers in the shop, and came up with a prototype spool support and tensioner. It’s made from a scrap of cellular PVC trim, a couple of nylon standoffs (tapered in a pencil sharpener!), and an old coat hanger. And, it looks like hell. :-)

chas_raymond_20.jpg chas_raymond_23.jpg

But amazingly enough, it worked on the first try! chas_raymond_25.jpg

So I made prototype spool holder no. 2, also using cellular PVC, and some slightly nicer hardware. The PVC got a coat of Sharpie. Classy, eh?


Someday maybe it will get a proper brass spool bracket. Until then… this will display well enough.

Once it was sewing, I was able to make a slow-motion video of the under-bed action which produces the chain stitch. The trick is that the loop formed as the needle retracts is grabbed by a hook, which holds onto that loop until the needle descends again, and passes through that loop. At that point the loop is released, and the hook grabs the new loop passed in by the needle. The video : chas_raymond_slomo.mp4

The video is also available on youtube.





Willcox and Gibbs treadle base with 1893 parts machine

(Gone! No longer mine.)

written Christmas Eve 2018 [index] [index by age]


You’d think that owning four Willcox and Gibbs chain stitchers would be enough, but now I have five! Well, four and a half, anyway. This one came attached to a lovely treadle base that I really wanted, and the price was right. (In my defense, the household balance is somewhat intact because yesterday I sold the boxed W&G motor base and foot pedal that came with my 1914.) And this machine doesn’t really count anyway, because it’s been stripped of almost every removable part. (I knew that before buying.)

w_and_g_treadle_1.jpg w_and_g_treadle_2.jpg w_and_g_treadle_3.jpg

The treadle top is also incomplete: it has no bonnet (or “coffin top”, as they’re sometimes called), and it should have at least one drawer hanging under the right end of the table top. In addition, there’s a crudely drilled oblong hole in the middle of the table, as if someone tried to turn the top into a lamp stand. Happily that hole is mostly covered by the sewing machine when it’s installed.

The seller told me that the machine was his parents’, and that he remembered playing with it as a kid. It sounded like it had left home with him in his 20s. He didn’t offer up an explanation for the missing parts, or the hole in the table. I didn’t press him. :-)

I’ll certainly install a different one of my machines in the treadle. I’ll also look into swapping parts, in one direction or another, with my 1904 machine, which is complete, but somewhat “cosmetically challenged”.

a week or two later…

I decided that the correct way to do the parts swap was to abandon the 1904 castings. The needlebar lever had an ugly repair made to it, and the decals are mostly gone. So the “new” 1893 machine got a full complement of fresh parts (only 11 years too new), and now looks pretty good!

w_and_g_treadle_after_4.jpg w_and_g_treadle_after_1.jpg w_and_g_treadle_after_2.jpg

updated March 2020

Well, owning five W&G chain stitchers seemed excessive. So I’ve passed this one on to another collector, who unlike me, actually plans to sew with it!

I only sold the machine itself – the treadle now holds my 1875.





Makeshift DIY spool winder

written January 2019 [index]

Antique machines look a lot better if you don’t thread them with modern plastic and styrofoam thread spools. I have a collection of old wooden spools, but some are empty, and those that aren’t mostly have thread that breaks really easily. Thread doesn’t always age well, and I think modern thread may just be stronger.

So with some pointers from my friends at the Victorian Sweatshop[sweatshop], I came up with a solution for rewinding my old spools with new thread:

winder_1.jpg winder_2.jpg









1906 New Home “New Ideal”

written January 2019 [index] [index by age]


I was seduced by the glittery decals on this little New Home machine when it was listed on Craigslist, and the price was low. So Julia and I took advantage of a sunny winter day to drive down to the Cape to pick it up, and to go for a nice hike. The hike alone was worth the trip.

The machine isn’t quite as glittery overall as I’d thought. The decals are in good shape, for 1906, but there’s extensive paint chipping along the front of the base, and it was missing the presser foot and stitch length selector knob. It came in a truly junky case, which probably isn’t worth saving.

The motor, which I had thought was original, is clearly not. It’s too new to be from 1906, and there’s no motor boss for mounting it – the mounting consists of two #10-24 holes drilled and tapped in the column. Definitely not original. Given the absence of a mount for either a motor or a crank, I assume it was originally on a treadle. The foot controller seems a lot older than the motor. Perhaps it’s on its second motor, or, more likely, whoever did the conversion to electric grabbed whatever they had on hand. I think they added a lamp, too – there’s a hole drilled and tapped in the middle of the upper arm, just below the “New Ideal” decal, and a bunch of paint is chipped in that area.

Happily it did have the original shuttle and bobbin, and it stitched nicely on the very first try.

But after cleaning it up, and borrowing a presser foot from my other New Home, I’m glad I bought it… new_ideal_12.jpg new_ideal_13.jpg new_ideal_14.jpg new_ideal_15.jpg new_ideal_16.jpg new_ideal_17.jpg

I made it a custom base, from the rest of my scrap of butcher block. Butcher block works really well for many old machines, which tend to not have much mechanism protruding below the “water line”.

new_ideal_18.jpg new_ideal_19.jpg

updated February 2019

Someone on the Victorian Sweatshop[sweatshop] forum had the stitch regulator knob, as well as a few New Home presser feet. Nice improvement!

new_ideal_20.jpg new_ideal_21.jpg





1931 Singer Model 101

written March 2019 [index] [index by age]


This machine (s/n AD386886) came up for sale nearby, and I realized that if the 101 is anything like the 201 in terms of “personality”, and if it turned out to be a decent machine, I could maybe sell my 201 (in its cabinet), thereby freeing up some floor space.

Besides being the first domestic machine Singer ever produced (in 1920) as a dedicated electric machine (it has a potted motor, and no belt groove on the hand wheel), it also had a number of other innovations. The bottom of the machine, instead of being open, for maintenance, is a mostly sealed tub. For maintenance, one removes the bed plate. That sounds much harder than simply tipping the machine back, as is done with most other machines. Except that they also simplified the oiling ritual, by implementing a one-stop oiling mechanism – cloth wicks take oil applied to a central oiling hole to all of the pivots one would normally need to lubricate. So there’s one oiling hole in the bed plate for everything underneath, as well as the usual assortment of oil holes on the upper parts of the head.

So I went and got it – it was quite inexpensive. With good reason – the hand wheel wouldn’t budge at first, and the rubber bobbin winder tire had decomposed and literally dripped onto the hand wheel and the base below it. The hand wheel has loosened a bit with some oiling, and the machine now turns over with some effort. It’s going to take some work. (Apparently when the seller bought their house 30 or 40 years ago they never cleaned out the attic. When they finally did, recently, they found this machine. Note to self: don’t store sewing machines in the attic for decades and expect them to work afterward.)

singer101-6.jpg singer101-7.jpg singer101-4.jpg

Here’s a shot of the tentacular oil wicks under the bed plate singer101-9.jpg

updated a couple of weeks later

The 101 mostly freed up with liberal doses of fresh oil. It still felt a little stiff, so I switched to penetrating oil… which didn’t help. In the end it turned out that someone had incorrectly installed the small stack of washers that act as “clutch plates” when locking and unlocking the hand wheel with the stop motion screw. With that stack backwards, the hand wheel would drag on the body of the machine when the stop motion wheel was tightened. Happily, a copy of the adjuster’s manual explains exactly how to get those washer right. After a bit more cleanup, the machine is sewing perfectly. I just need to make a display base for it now.

updated October 2019

Turns out that a display base needs to be pretty tall to hold all of the 101’s undercarriage, so the appearance isn’t quite what I’d prefer. It looks better in a sewing machine cabinet, I think. Anyway, this what it looks like these days:

singer101_after-1.jpg singer101_after-2.jpg singer101_after-3.jpg singer101_after-4.jpg





1906 Singer Model 15-30

(Gone! No longer mine.)

written March 2019 [index] [index by age]


This 1906 model 15 (s/n H906147) came to me from my brother-in-law, who rescued it from a scrap metal recycling drop-off near his home in New Jersey. (Thanks Scott!) Considering where he found it, it’s in decent shape. The Tiffany/Gingerbread decals are faded, but still have some of their iridescence, and while it’s all a bit rusty, I’ve seen far worse. It’s missing its bobbin plate and bobbin case, but otherwise looks complete. It’s stiff, but it does turn over.

singer15-1.jpg singer15-2.jpg singer15-3.jpg singer15-5.jpg singer15-7.jpg singer15-8.jpg

updated two days later

Well, that was quick! The first picture, above, was taken post-cleanup. A little oil in all the right places, and let it sit for a couple of days, moving the hand wheel once in a while, and it now stitches just fine. It’s missing its bobbin case, which is a crucial part of course, but it turns out that the model 15 and its clones were so popular that the class 15 bobbin case was used by Singer, and other makes (Necchi, for example) all the way into the 1980s. So I was able to borrow the bobbin case from my mother’s Fashion Mate 237, and it fit perfectly.

updated December 2019

Since I got a much nicer 15-30, and this one has always been compromised by bad decals and no motor boss (so it can only be treadled), I decided that perhaps it was right that it was destined for the scrap heap when I got it. It’s okay – there are lots of far better machines that to be rescued.





c.1873 Gold Medal “Home”

written March 2019 [index] [index by age]


This machine was made by the Gold Medal Sewing Machine Co., of Orange, Massachusetts, which was a predecessor to the New Home company. The last patent date on the shuttle slider is 1865, and from what I’ve read so far, it seems to have been made sometime between 1870, when Stephen French designed it, and 1877, when all of the “Combination” patents had expired, and the New Home machine was developed. It’s dirty and a bit rusty, but it turns over, and the shuttle is present. The serial number is stamped on a small disk which sits at the base of the spool pin: 71319. I’d love to think this means it was the 219th machine made in 1871, but there’s no basis for that, of course. I don’t even know if that style of numbering had been created yet. Fantasy aside, that number doesn’t really help with dating, since there are no good records.

home_1.jpg home_2.jpg home_3.jpg home_4.jpg home_5.jpg home_6.jpg

There’s just barely a vestige of a floral painting on the faceplate, and there’s a just a bit left of a painting on the bed as well – it might be picture of the factory, but there’s too little remaining to be sure.


The machine was clearly made by Gold Medal – it’s stamped right into the slider – but at least some advertising shows it as being made by Johnson, Clark & Co., which was a previous, or alternate, incarnation of the same company. Edit: I’ve since acquired a Home Shuttle, a later version of which is also pictured in this advertisement. It, too, was designed by Stephen French. home_flyer.jpg

Anyway, I’m looking forward to getting it cleaned up.

updated several days later


I think it came out well, and there’s more of the decorative painting left than I’d realized. home_after_2.jpg home_bed_painting.jpg home_face_painting.jpg

Cleaning the “hidden” areas usually isn’t necessary, but it always makes me feel better about myself. ;-) home_cleaned_1.jpg home_cleaned_2.jpg

Some random detail shots, taken during the cleaning process. Mostly they were to remind me how things would go back together, so they’re all “still dirty” shots.

home_detail_1.jpg home_detail_2.jpg home_detail_3.jpg home_detail_4.jpg home_detail_5.jpg home_serialno.jpg

And here are some before/after comparison shots. I rarely think to do these, but I should – even I tend to forget how dirty these machines sometimes are when I get them.

home_compare_1.jpg home_compare_2.jpg

home_compare_3.jpg home_compare_4.jpg

updated July 2019

It took me quite a while to complete the refinishing of the woodwork on this machine. I believe the original finish was not shellac, since there was (and still is) one bit of good original finish preserved under the “Home” medallion on the bonnet, which rubbing alcohol wouldn’t touch. So, lacquer perhaps?

Using #0000 steel wool and Murphy’s Oil Soap (a combination recommended by someone I trust – I wouldn’t have thought of it myself!), I was able to quickly rub all of the failed finish from the treadle table. I quickly oiled that with Watco furniture oil (“natural”), and was pleased with the result.

The finish on the bonnet was in better shape, but it had to match the table, so off it came. Unfortunately, it has lovely inset panels (some with curved edges!) on all five of its surfaces, so it was much harder to strip. There are a lot of little ledges and corners – not only are they hard to get into, but the finish was often thicker in those areas. Each side took a day or more, and the project got set aside for successively longer periods after I finished each one. :-)

The medallion on the front is made from a primitive pressboard, apparently molded in the medallion’s shape. It has some hand-painted details, so of course it didn’t see steel wool. I think the lacquer (?) was all gone anyway. Its only treatment was a coat or two of oil.

Happily, it all looks great.

home_bonnet_done_1.jpg home_bonnet_done_2.jpg

home_bonnet_done_3.jpg home_bonnet_done_4.jpg home_bonnet_done_5.jpg





Threading the Home

added August 2019 [index]

The needle is a Boye 23 or Singer 12x1, the same needle used in the contemporaneous Singer Model 12 / New Family.

Threading the top thread is pretty straightforward (pictures below):

home_threading_1.jpg home_threading_2.jpg home_threading_3.jpg home_threading_4.jpg





Threading the Home’s shuttle

added August 2019 [index]

This machine’s shuttle is different than those on both the Gold Medal “Home Shuttle” machines that it coexisted with, and the New Home machines that followed. It’s a little tricky to thread. I’m pretty confident that this threading is correct, both because the thread path matches the existing wear marks on the shuttle, and because it makes sense once you’ve finished. (And if I’m right, I’m not very surprised it was a short-lived design!)

(If this shuttle looks familiar, and someone knows of another machine this was used on, please say so! Likewise if you know of a different threading path.)

home_shuttle_1.jpg home_shuttle_2.jpg home_shuttle_3.jpg home_shuttle_4.jpg home_shuttle_5.jpg home_shuttle_6.jpg home_shuttle_7.jpg





1888 Singer VS3

written late March 2019 [index] [index by age]


I have several VS (vibrating shuttle) machines (my Home, New Ideal, and New National – all sort of from the same company), but none by Singer. They’re a pretty big part of the early Singer lineup, and I’ve thought I should have at least one. (Nice excuse to buy another machine, eh?) So when this lovely example came up for sale, I went for it. It’s in very good shape, with nothing missing. The chrome slides and needle plate are pitted, and the ends of the bent wood top are pulling away, so I’ll likely try and re-glue that, but otherwise I think all everything needs is a nice cleaning. I’m actually happy that it at least needs that – it came from someone else’s collection, and it might have already been immaculate. That would have been disappointing. :-)

Of course the decals are all a bit faded, but they’re still very pretty, and none are completely worn off. The Singer name for this decal pattern is “Tapestry”, btw.

vs3_3.jpg vs3_4.jpg vs3_7.jpg


I wonder who wound this bobbin, and when? vs3_6.jpg

Interestingly, Singer actually seems to have called this machine the “V.S. Hand Machine”, and only used “V.S. No.3” for the treadle version. vs3_parts_cover.jpg

The two do have different castings – the treadle version would not have been cast with the protrusion from the side of the pillar to which the hand crank mechanism is attached. vs3_11.jpg

updated November 2019

I finally let the VS3 come to the top of the “work queue”, and spent some time repairing the case and giving the old thing a thorough cleaning. It’s amazing the grunge that can come off an old machine.

vs3_22.jpg vs3_23.jpg vs3_24.jpg

vs3_30.jpg vs3_26.jpg

vs3_27.jpg vs3_28.jpg vs3_29.jpg

Compare these before and after pictures of the same area:

vs3_34.jpg vs3_31.jpg

The case came out really well. I had to re-glue the ends, which were mostly falling off, and I had to replace one end of the little storage box. The color’s not perfect, but it’s pretty good. I’d rather someone know it was a repair. vs3_21.jpg vs3_20.jpg vs3_33.jpg





Mrs. Potts’ Cold Handle Sad Iron

written April 2019 [index]

I’ve made plans to take my W&G hand crank machine with us in our van on our next longish vacation, in case I get bored and want to make something. Sewing sometimes involves ironing, so I decided I needed an “off grid” iron. And this appeared at a local estate sale.

sad_iron_1.jpg sad_iron_2.jpg

Even if I never use it, I’ll chuckle at the notion of taking an iron on a camping trip! It’s only about 5” long, and has a detachable handle and heat shield. I don’t really know when it was made – probably in the 1920s or 30s? An iron this size would have been for collars, lace, etc. Not bed sheets!

The name “sad iron” (or “sadiron”) apparently comes from an archaic use of “sad”, which meant “solid”. The detachable handle was patented in 1871 by an inventor (she called herself an “inventress”) from Iowa named Mary Potts. The removeable handle meant that the handle remained cool while the base was heating on the stove. Staying cool also meant the handles could be made of more varied materials than before (like wood), since they stay near hot stove. She also patented a new construction for the base itself. Rather than making it from solid iron, which led to a heavy, very hot iron, she made the base hollow, and filled it with a heat insulator like cement or clay. This caused more heat to be directed downward, away from the user’s hand. Finally, her irons were double-pointed, and could be used in either orientation. Mrs_Potts_sad_irons,_ca_1899.jpg





Reattaching a loose bobbin end

written April 2019 [index]

Sometimes one of the ends of a long bobbin comes loose. The brass ends are simply press-fit onto the shaft. Glue might work to keep the end in place, but since it wasn’t glued to begin with I’d personally prefer to fix it without.

I had a New Home bobbin that had this problem – here’s what I did:

I took the loose brass end, and set it on a solid chunk of steel that wasn’t going to move when I hit it. I set the brass piece down curved side up. I happen to have a nice heavy piece of smooth steel bar handy at my workbench, but the flat end of my vise, or an anvil, or really anything solid would do. A concrete floor would probably work, but you don’t want to damage the brass end against it. Smooth steel seems best, to me.


Then I took a large drift, set its working end on the brass piece, and tapped the other end with a hammer. I used a small tack hammer, and didn’t hit the drift very hard – you can always hit it again, but it’s hard to take it back if you hit too hard! The goal is to deform the brass just enough to make the hole not fit the shaft anymore. (Probably what’s actually happening is that the very edges of the hole on the curved side of the end cap are being peened over into the hole a bit.)


Sure enough, after smacking the brass piece just once between the drift and the steel slab, it no longer fit easily onto the shaft – I could press it on just a bit by hand, but it jammed up nicely very quickly and wouldn’t go further.

So, to get the brass end the rest of the way on: I rummaged in my junk box(es) and found a thick brass washer , with a hole larger than the bobbin shaft but quite a bit smaller than the brass bobbin end. The washer was thicker than the eventual protrusion of the bobbin shaft from the bobbin end – a brass nut would have worked as well, and been easier to find. Lots of things would work – basically any piece of steel or brass with a hole in it.


I centered the bobbin end (the one I just partially pressed on) on the hole in my washer, and used my small hammer to tap on the other end of the shaft to drive the shaft through the too-tight bobbin end. I was careful not to go too far – I went just far enough to make the two ends of the bobbin symmetric. It only took a few taps of the hammer.

I now can’t budge it by hand – it’s on there good and tight. And all without even unwinding the bobbin. :-)





A pilgrimage, of sorts, to Orange, MA

written April 2019 [index]

I live near Boston, so I get out to central Massachusetts fairly often.

One day, while en route home from a hike, I realized we were quite close to Orange, the town where the Johnson, Clark & Co. sewing machine companies all came from: Gold Medal, Home, and New Home. I have two New Home machines, and I’d read that the original buildings were still there. So we made a short detour, and I took a few photos.

[Update – in 2020, I now have six from these companies: A “New Ideal”, a “New National”, and a “Midget” from New Home, a chain stitcher and a “Home” from Gold Medal, and a “Home Shuttle” from Johnson, Clark & Co.]

new_home_in_orange_4.jpg new_home_in_orange_3.jpg new_home_in_orange_2.jpg

Those pictures are all of the same building featured in the foreground of these renditions of the New Home complex, some of which I downloaded from a local museum dedicated to industry in the area, and the other two came from needlebar.org. I just love that the building is still there. It’s entirely possible that my Home machine was made right there in the early to mid 1870s.

New_Home_Factory.jpg Newhomefactory.jpg Newhomefactory2.jpg

Interesting that the facade of the building I photographed is rendered slightly differently in all three of these images!

updated August 2019

There’s a very complete article on the history of New Home on the ISMACS website. I read it quite a long time ago, but I guess I only skimmed the sections discussing the buildings themselves. It seems that the original building on the south side of the river was destroyed by fire and replaced by 1901. Also, “[t]he old original shop, in which the manufacture of sewing machines was begun in the early sixties, was demolished in 1903” , and it was replaced by a new four-story building. It’s unclear (to me) where that original shop was. Regardless, it seems impossible that my Home machine might have been built in one of the still standing buildings. Oh well!

I’ve also recently found a page of photos on the NeedleBar site. These show more clearly than my pictures that the buildings standing today are the ones depicted in the rightmost historic drawing, above. The other two drawings are more similar to one another, and presumably show the 19th century buildings.

updated November 2019

I’ve found some more historical maps and photos of Orange.

The two “birds eye” maps are interesting because the one from 1878 shows Gold Medal occupying just one building on the north side of the river, whereas just 5 years later, the 1883 map shows New Home occupying a huge complex of buildings on both sides. orange_mass_birds_eye_1878.jpg orange_mass_birds_eye_1883.jpg

By default my blog resizes large images. Since these have so much detail, the full resolution versions can be found here (1878) and here (1883), or at the Digital Commonwealth collection where I found them: here. and here.

I also found this neat company photo from 1871, which would make it a Gold Medal picture, and not New Home as labeled in the image. new_home_sewing_machines_cos_manufactories_in_1871.jpg The full size version of that can also be found here, at Digital Commonwealth.





1921 Singer Model 15-30

written April 2019 [index] [index by age]


I already have a 15-30 head with Tiffany/Gingerbread decals – one of my brothers-in-law rescued it from the scrap metal recycling pile at the DPW in the town where he works. It’s in surprisingly good shape, given that history, but it has a fair number of scratches, the decals are worn and have lost most of their color accents. And because it’s from 1906, it has no motor boss. This means I can’t really make it sew, since I’m unwilling to give it a treadle.

So I took notice when this 1921 portable showed up on Facebook Marketplace. They wanted $25, and it looked to be in really good shape. An hour before I was going to go pick it up, they called and apologized profusely that they’d dropped it! It seems the case hadn’t been latched properly, and they claimed that it was now “garbage”. I was skeptical, and asked what was damaged, and they said I could have it for free if I was still interested.

So I drove over and walked right out with it, without even opening the case. Sure enough: the base of the case was broken a bit, the foot controller had popped open (but no parts were lost), and the light had come loose, but it tightened back up. There was no damage done to the paint or decals that I could find. Did I mention that all it needed was some thread and oil to start sewing perfectly? And it was free!

singer_15_no2_2.jpg singer_15_no2_3.jpg singer_15_no2_1.jpg

updated October 2019

I made a display base for it, to better show it off. It’s awfully pretty. singer_15_no2_10.jpg singer_15_no2_11.jpg singer_15_no2_12.jpg singer_15_no2_13.jpg





1920-1940 Müller Model 12C Toy Chain Stitch

written July 2019 [index] [index by age]


I found this German toy machine while we were visiting with Julia’s parents on the New Jersey shore. It was listed by a collector/dealer in Manahawkin, the next town over, so I went and took a look.

Like most toy machines, it’s a Gibbs-style chain stitcher. It’s not an important or valuable machine, but it’s awfully cute! And, being German, it’s very well made for a toy – even including some brass components. (The Singer Model 20 is very cheaply made by comparison.) The Müller company (also spelled “Mueller”, and, of course, “Muller”) was founded in Berlin, in 1868, by Friedrich W. Müller. They also made much simpler machines, with stamped steel bodies, but this model is one of their largest, and almost of “adult” quality.

The arrangement of the tensioner on this Model 12, with the tensioner mounted in the usual vertical position, identifies it as a 12C, according to pictures in Manfred and Rita Koym’s book about Müller’s toy sewing machines. (The other models all have the plates mounted horizontally, or else have tension applied directly to the spool.) The 12C was made between 1918 and 1945, but it’s very unlikely it was exported during that full span, given the wars going on at the time. So I’ve rounded the likely age range to 1920 to 1940.

Identifying marks: The stitch plate (after several layers of rust were removed) shows the serial number as “No. 53294”. The stitch plate also has the lettering “MADE IN” along one edge, but the next word has been roughly scratched out – presumably an act of patriotism, or fear of reprisal, if perhaps the owner had immigrated from Germany. Finally, on the hand wheel, one spoke has the digit ‘5’, and the next has the letter ‘G’, in a slightly larger typeface.

It’s mostly complete, as far as I can tell. It’s missing the retainer thumbnut from the top of the spool pin, and also the tin tray that would have been exposed when the machine is tilted back. Oh – and there’s no needle. (Anyone know what size it takes?) The condition is a bit rough, but I’ve already gotten things freed up enough that I’m confident it could sew before long.

muller-12_1.jpg muller-12_2.jpg muller-12_3.jpg muller-12_4.jpg muller-12_5.jpg muller-12_6.jpg muller-12_7.jpg

[ a few days pass ]

After taking it apart to clean it, I couldn’t resist this picture:


And then: muller-12_10.jpg muller-12_11.jpg muller-12_12.jpg muller-12_13.jpg muller-12_14.jpg muller-12_15.jpg

It didn’t take long to get it to sew nicely.

There is one thing wrong with it. Perhaps there’s a piece missing from up inside the needle bar, which should act as a needle stop, because if I do what my (German language) manual (kindly sent to me by Rita Koym) says, and put the needle all the way in, then it’s way too high. It will barely protrude below the cloth plate when the needlebar is all the way down. muller-12_20.jpg

One person, who owns a clearly well-maintained model, has told me that their machine has a proper needle stop. So there’s something wrong with my needle bar, I guess. On my machine, I’d say that the correct needle height is set with the needle bar fully raised, and presser foot down. In those conditions, the needle should be above the presser foot by about the thickness of a dime, maybe a skootch more. So, say, 1.35 to 1.5mm. Since the feed dogs are in their raised position when the needle bar is at its highest, this measurement depends on the feed dogs being adjusted like mine, which might be a bit taller than normal – someone put some thin shims under the dogs, and I’ve left them there after reassembly. (This very low needle position is, I’m sure, a safety feature to keep tiny fingers from being stabbed.)





1877 Singer Model 12

(Gone! No longer mine.)

written August 2019 [index] [index by age]


I already have an earlier variant of this machine, an 1871 New Family, so I wouldn’t normally have gotten this 1877 (s/n 2603641), which is arguably not as nice. But it was free – what can I say? Someone on Facebook was moving, and needed it gone. I was happy to help. The case needs some refinishing work of some sort, and the treadle irons are a bit rusty, but the machine itself is remarkably clean, both outside and in. Plus, it came with some doodads in one of the drawers: needles, binding attachments, extra presser feet.

model12_2.jpg model12_3.jpg model12_4.jpg model12_5.jpg model12_6.jpg model12_7.jpg model12_11.jpg model12_14.jpg model12_10.jpg

And, as an added bonus: the assembly number is still present, in 142 year old handwriting, on the inside of the rear access cover. model12_13.jpg

updated August 2019

In the end, I decided I couldn’t/shouldn’t keep this machine, so I gave it to someone who could give it a better home.





1938 Singer Model 201-2

(Gone! No longer mine.)

written September 2019 [index] [index by age]


I’ve regretted selling my previous 201-2 ever since it pulled out of the driveway, so when someone offered one up for free on a local mailing list, I went for it. It came with drawers and boxes full of thread spools (including many wooden ones), unopened packages of needles, and a few accessories. Plus the usual old buttons and bits of ribbon.

It’s not as handsome as the last one, but it wears its pin-rash scarf with flair. (I call it that because when you use a cloth like that to store your pins and needles, you invariably scratch the paint underneath repeatedly, resulting in what’s known as “pin rash”. Not sure what happened to the light – it’s been replaced with an aftermarket rear add-on. The cabinet has a sticker under the top referencing a different machine’s serial number, from 1954. The machine came to me with a 1957 manual, though the machine itself is a 1938.

The owner, who was cleaning out his mother’s house, said he remembered the machine being around since he was very young. That would have been around ‘57, the date on the manual, so maybe she bought it used, and the cabinet, lamp, and manual were all part of the package. Who knows.

Anyway, I plugged it in and gave it a whirl. Sounds lovely, just like a 201-2 should.

201-2_no_2_2.jpg 201-2_no_2_3.jpg 201-2_no_2_4.jpg

Oh, and he also had a nice old telephone. When I commented on it, he asked if I’d like to have it. That was an easy decision.

updated December 2019

I really didn’t have room for this 201, and I realized that if I want one again someday, I’ll be able to find a nicer one. So I’ve passed this one on…





c.1920 New Home “Midget”

written October 2019 [index] [index by age]


I bought three machines at once yesterday, picked from a batch of seven machines that was erroneously advertised as “Lot of 7 antique toy sewing machines”. They were certainly all antique, but only four were toys. The prices were right, so I bought all of the other three: a New Home Midget, a Willcox & Gibbs chain stitcher, and a Charles Raymond “New England” machine.


The New Home Midget (originally called the “Little Worker”, and also labeled by New Home as “Mothers Helper”, and “Baby Sheridan”) was marketed both for children and as a compact machine for adults. It might be considered a toy, except that unlike almost all toy machines, which have no bobbin and use a Gibbs-style rotating hook to form a chain stitch, this machine is a vibrating shuttle design, with its very own compact shuttle and bobbin. The build quality and the materials used were not up to New Home’s standards for their “real” machines, however.


updated April 2020, with four paragraphs of historical musing

The patents on the machine (USD41288/US1017262 from 1911/1912) are both held by Orville Kies, who along with Jennie Kies (his wife?) was a principle in the Knickerbocker Hand Sewing Machine Company from at least 1909 to 1919.

I’d love to have a better understanding of the relationship between Knickerbocker and New Home, as well as who exactly built it. Sewalot has an image of a slide plate embossed with “Knickerbocker Hand Sewing Machine Co., New York. Pat’s Applied For”. Knickerbocker cloth
plate This makes it sound like a) it’s an early machine (no patents yet), and b) that it was made by someone other than New Home.

I wonder if Kies/Knickerbocker sold the rights to their machine to New Home, knowing that they wouldn’t be able to compete with the “big boys” in terms of marketing and distribution. The Midget is a nice little machine, but it’s really up to New Home’s normal standards. It’s a little clunky and loose by comparison, and just more cheaply made. It’s maybe telling that the “New Home” name doesn’t even always appear, anywhere, on a Midget.

But back to my machine: This electric version is a relative rarity – almost all of these machines were hand cranks. The cord on this one was melted badly – it clearly had a short circuit at some point. But after cutting off most of the melted/crumbling wire, and checking for short circuits, I hooked up some clip leads and the motor spins nicely.

new_home_midget_1.jpg new_home_midget_2.jpg new_home_midget_3.jpg new_home_midget_4.jpg new_home_midget_5.jpg new_home_midget_6.jpg

The switch on the base was clearly added after the fact, since after all, there was already the factory-installed switch on the motor. To install it they cut throught the nice original decal showing what size needle to use. (Sigh.) The installation was not done well. The wire passed through a hole drilled in the base, with no grommet. Not only was there no grommet, but the edges of the hole were never de-burred. I suspect this is why the cord shorted and melted. When I replaced the wire from the motor I bypassed the add-on switch altogether.

It turns out that for some reason, New Home equipped this machine with an AC motor whose speed can’t be controlled by a standard sewing machine controller. So when you turn it on, it will (attempt to) run at full speed until you turn it off. The only saving grace is that the motor isn’t all that strong, so the machine gathers speed slowly. Turning it off is also a bit of an adventure, since the rotary switch on the motor is right next to the friction drive wheel – very easy to grab the wrong “knob”!

I suspect hand cranking this machine would be a far more pleasant experience. I’ll have to see about fabricating a crank arm.

[ a few more days pass ]

While cleaning the Midget, I realized that this machine is perfect for demonstrating how a VS (vibrating shuttle) sewing machine works. The cloth plate can be removed independently of the needle plate, leaving the sewing action completely exposed and operational.

I filmed this in slow motion, and you might want to slow it further, or even move the video cursor manually with your mouse, when watching it:

midget_VS_demo.mp4

Also available on youtube.

You can see how the needle, after first forming the initial small loop that the shuttle’s point will hit, does another small dip in order to provide more thread – this is to make the loop big enough for the shuttle to easily pass through.

updated November 2019

I actually got around to making a crank arm for the Midget. Using steel was probably beyond my meager metal working tools (and skills!), so I used aluminum instead.

To form the D-hole needed by the shape of end of the crank axle, I drilled some small holes to outline the shape, and then one larger hole to take out most of the material in the middle (not pictured). A hand file did the rest. I confess to some high tech: I used a CAD program to figure out where the holes should be drilled, and fed that to my small CNC machine to mark their locations. I don’t have the right cutter for the CNC to actually do the drilling, so that was done by hand.

new_home_midget_10.jpg new_home_midget_11.jpg new_home_midget_12.jpg new_home_midget_13.jpg

The round plastic knob came from the hardware store. The thought of using a plastic part on an all-metal machine doesn’t feel quite right, so I try to think of it as a modern form of Bakelite instead. ;-) It actually machined a little like Bakelite, so I might not be far off. Maybe someday I’ll try turning a more authentic handle on my wood lathe, but the round ball fits well on the Midget, I think. Plus, my wood turning skills are even more meager than my metal-working skills.

new_home_midget_15.jpg new_home_midget_18.jpg





1875 Willcox & Gibbs Automatic Silent Sewing Machine

written October 2019 [index] [index by age]


If the price hadn’t been so low, I probably wouldn’t have bought this, since I already have several W&G chain stitchers, and in the seller’s photos I’d seen it looked like it was probably made in the teens or 20s. But when I got it home I realized that despite its excellent, clean, condition, it actually dates from 1875. That’s the year in which the automatic tensioner mechanism was introduced. From then, until production ceased sometime around 1940, the design was virtually unchanged.

w_g_1875.jpg w_g_1875_1.jpg w_g_1875_2.jpg w_g_1875_3.jpg w_g_1875_4.jpg w_g_1875_5.jpg

In the end, its home is on the 1893 treadle I bought a while back. w_g_1875_11.jpg





c.1861 Charles Raymond

written October 2019 [index] [index by age]


The “New England” style machines are often mistaken for toys, because they really are very small. But they were made for and sold to adults. I already have one, from 1859 or 1860, and this machine is very similar, but far more complete. It does show incremental design changes. The tension mechanism has been revised, to avoid the wear that the initial version caused to the faceplate of the machine, and probably also to make the adjustment more stable. The metal castings changed somewhat as well.

Not only does this machine have almost all of its parts, but it also still has some of its original hand-painted artwork. I’m hoping it will clean up nicely.

raymond_no2.jpg raymond_no2_1.jpg raymond_no2_2.jpg raymond_no2_3.jpg raymond_no2_4.jpg raymond_no2_5.jpg raymond_no2_6.jpg

With a little oil applied, the decoration becomes a little more clear:

raymond_no2_10_close.jpg raymond_no2_11_close.jpg

updated November 2019

I’ve now cleaned up my second Raymond, as well as my Gold Medal chain stitcher (in a later blog entry), so I’m getting pretty good at setting the timing on Raymond-style loopers. They all work with 15x1 needles, which is very convenient.

This machine suffered a fall at some point, or maybe a couple of them. The bolt that acts as the axle for the crank wheel is quite bent, so the wheel sits at a tilt when installed. Happily, it doesn’t affect its cranking ability – the axle doesn’t turn, so the wheel is tilted but doesn’t wobble.

In addition, the brass ‘L’ bracket that holds the spool is both bent and twisted. raymond_no2_21.jpg

Mostly this would just be an aesthetic issue, but it also causes the vertical lever that applies clamping to the spool to not make contact with the little roller mounted on the machine’s frame. The lever does, however, make contact with the head of the screw that holds that roller in place, and that seems to be enough to give the intended braking action.) raymond_no2_27.jpg

The lever and roller are described in detail in Raymond’s hot-off-the-presses patent, so its a shame they don’t quite work as intended. The patent is US patent 32925, issued July 30, 1861 – it’s stamped on the machine’s needle plate. The patent covers aspects of the design and adjustability of the looper which are new with this machine. raymond_no2_24.jpg raymond_no2_25.jpg

I love reading old patents – here’s how it describes what that lever and roller accomplish when they put the brakes on the spool: ”…[the roller presses] back the lever, and so to force [it] against the cone in such manner as to prevent the turning of the said spool and drawing off of anymore thread during the completion of the descent of the needle, by which means the needle in completing its descent is made to draw up the loop so near the cloth that the looper cannot interfere with it in its advance to form the next loop. The loop is not, however, drawn up tight by this operation, but is tightened by the next upward movement of the needle.” Oddly, after all the description (I only quoted about a quarter of it), the closing paragraph of the patent doesn’t actually list that lever and roller as one of the claims of the patent. Perhaps I don’t understand patent-speak properly, or maybe Raymond was just establishing prior art for some reason. Or maybe he decided to drop the claim at the last minute.


The machine was missing the thumbnut, spring, and small brass cone that hold the spool on. I was able make a cone on my lathe, and I “borrowed” the thumbnut from the stitch length adjuster, where it serves as a locknut. From pictures of fully intact machines, that thumbnut is identical to the one that was lost. The spring, of course, is just from my junk bin.

raymond_no2_22.jpg raymond_no2_23.jpg





c.1955 Dexter Sewing Machine

(Gone! No longer mine.)

written November 2019 [index] [index by age]


I went to an estate sale today, and came home with two sewing machines. One is (at least relatively) sublime, and this one is ridiculous, and only cost me $2.

Made by the Dexter Sewing Machine Company in the 1950s and 1960s (from what I’ve been able to find), this little hand stitcher sews a simple chain stitch. The little spring on the side of the hook is what hangs onto the loop until the needle can pass through it on its next pass. Feeding the cloth for each stitch is a very manual operation. There are later models with a stitch selector on the tension knob, sold as a “hemmer and stitcher”. It came in a box with a bigger instruction booklet. This one is definitely earlier than those.

dexter_1.jpg dexter_2.jpg

updated December 2019

Well, the joke is that this little thing works seamlessly, because I can’t get it to sew a seam. But that’s not quite true: I can get it to go in a straight line, very briefly. Here’s proof: dexter_15.jpg

And, a few pages from the manual, to show how capable this little wonder really is! (Actually, I’ve heard from two different folks that they sewed quite a bit with one of these in their younger years. So I guess it’s possible.) dexter_14.jpg dexter_13.jpg dexter_12.jpg

And since it’s a chain stitcher, and I seem to like filming how chain stitchers work, here’s a video. You can see how the little spring on the isde of the hook holds the loop, until thread tension pulls it off.

dexter.mp4

Also available on youtube.

updated September, 2020

This little thing was never more that a curiousity for me, so when the Facebook Willcox & Gibbs group owner organized a raffle drawing when the group reached 1000 members, I was happy to donate it as one of the prizes. I was the only one to contribute an entire sewing machine. ;-) I hope its new owner is as amused by it as I was!





c.1870 Gold Medal Sewing Machine

written November 2019 [index] [index by age]


This machine was the reason for my visit to today’s estate sale. It was made by Gold Medal, the same company that made my Gold Medal Home, in Orange, Massachusetts. This chain stitcher, which is usually just called a “Gold Medal” (apparently it didn’t have a proper model name?) is an earlier design. It’s hook mechanism is much like that of my Charles Raymond machines, but it has traditional feed dogs, and a presser foot that swings out of the way like my toy Müller 12. The serial number is 4653.

It’s missing the tensioner parts – which I assume should be spring-loaded disks, or maybe a pulley style tension wheel. Other than that it seems to be complete. Oh – it might have the wrong needle currently – it seems too long. I’m not sure what needle it should take.

gold_medal_5.jpg gold_medal_6.jpg gold_medal_1.jpg gold_medal_2.jpg gold_medal_3.jpg

[ a day passes ]

It turns out that after setting the timing correctly, the needle that came with the machine is the right one. That’s good, because it would be hard to find another, I think. It was bent, but I managed to straighten it well enough.

I also figured out how the presser foot lifter is supposed to work. I had assumed that it worked like my Müller, and that the presser foot was to be lifted and rotated in order to lock it in the raised position: muller_lifter.jpg

The problem is that unlike the Müller, this machine has no slot in the side of the presser foot, and because it rises higher than the point of the needle before it can be rotated, it can’t, in fact, be rotated if there’s a needle in the machine.

I found the answer by searching the internet for other pictures of machines like this. I found one, and much to my surprise, it was a picture that I had taken! :-) It was from my visit to the Orange Massachusetts Historic Society. I won’t duplicate the original photo here, but in this cropped closeup of the lifter, you can see a small pin under the cap nut on top of the presser foot bar: goldmedallifter.png That pin is missing on my machine.

These pictures tell the rest of the story. First, see that little hole to the left of the presser bar, on top of the machine? gold_medal_8.jpg

There should be a mating pin in the bottom of the capnut – you can see where mine is broken off here, after the cap nut has been cleaned: gold_medal_9.jpg

Normally the pin is aligned with the hole in the machine, and the presser foot can go the whole way down. After lifting the cap nut and unscrewing it a bit, the pin will keep the presser foot in the raised position.

I think I can either drill out the remains of the original pin, or simply drill a new hole, and get it all working again.

[ a few more days pass ]

Well, I really wanted to see this thing sew before taking it apart for cleaning. So, armed with some pictures of a couple of complete and properly configured machines (sent by new friends on the Treadleon and ISMACS mailing lists), I made a prototype tensioner.

First, a picture of an original tensioner: gold_medal_real.jpg

And then my… well, let’s just call it a “rough draft”: gold_medal_15.jpg gold_medal_14.jpg

The pulley came from the hardware store. The “nut” is a piece of plastic that I was able to thread on to the shaft – that shaft is 5/32” in diameter, threaded at 28 tpi. I’ll never find a “real” nut to fit it, let alone two matching knurled brass thumbnuts like the originals.

At first I couldn’t get enough tension out of my contrivance. If I tightened the nut too far, the pulley would simply stop, the thread would start slipping, and I’d be left with loose loops of thread on the underside of the cloth. I tried various methods to get enough “traction” on the pulley so that the thread wouldn’t simply slip – I tried making it sticky with hair spray, and candle wax, but in the end, the answer seems to be to wrap the thread on the pulley multiple times. Once I did that, the tension tightened up, and the machine sewed fine.

[ another day or two… ]

I finished making a “real” replacement tension mechanism. I still haven’t repaired the presser foot lift pin – I’ll leave that for another day. It looks pretty good all cleaned up. (See the first picture, above, as well.)

gold_medal_25.jpg gold_medal_26.jpg gold_medal_27.jpg gold_medal_28.jpg





c.1900 Biesolt & Locke “Wettina”

(Gone! No longer mine.)

written December 2019 [index] [index by age]


I’m not sure why I bought this – it’s in far worse condition than I usually let myself get involved with. But it’s quite old, German, and it was dirt cheap (as you might imagine!). [ Don’t look at the picture above – that’s after it was cleaned up. Look at the next photo instead! ]


It’s missing some parts, the bobbin winder has been replaced, it’s all pretty rusty, and both its base (original) and the Singer bentwood top that it came with are in terrible shape. It does have a shuttle and bobbin, and the machine does turn over, albeit grudgingly. Another redeeming feature: it can sew in reverse, which is a bit unusual in such an old machine. (My next-oldest machine with reverse is my 201-2, first produced in 1935.)

wettina_3.jpg wettina_10.jpg wettina_5.jpg wettina_7.jpg wettina_8.jpg wettina_9.jpg wettina_11.jpg wettina_13.jpg wettina_14.jpg

I’m not sure what I’m going to do with it. It’s unlikely to ever be displayed in the living room. :-) But if nothing else, I’ve rescued its shuttle and bobbin, and perhaps other parts someone will want someday.

[ next day ]

Amazing what can be accomplished with a wire wheel, some steel wool, a little Evapo-rust, and some Howard’s Restor-a-Finish. It’s still no beauty queen, but it can sew, and I’m no longer afraid to touch it for fear of getting filthy. It now just looks abused, instead of extremely abused. I may still part it out.

wettina_after_3.jpg wettina_after_6.jpg wettina_after_2.jpg wettina_after_8.jpg wettina_after_16.jpg wettina_after_13.jpg

That last picture shows both forward and reverse stitches. The length of the forward and reverse stitches are synchronized. Stitch length is adjusted by the lever near the hand wheel, and is indicated by the pointer on the pulley guard. There’s a detent in the pulley guard to indicate “neutral” – where the feed dogs are stationary, and originally there would have been decals that indicated ‘R’ (for “rückwärts”/backwards) and ‘V’ (for “vorne”/forwards). There’s a thumbscrew on the rear that lets you set the maximum lever travel for both forward and reverse.

wettina_after_10.jpg wettina_after_11.jpg





Biesolt & Lock automatic tension release

written December 2019 [index]

I love this aspect of sewing machine collecting – discovering small technical advances, and thinking about the designer/engineer/mechanic that created them.

The Biesolt & Locke Wettina hand crank is clearly a copy of a Singer VS3 or 28. (I have a VS3.)  In particular, the tensioner setup is identical – the disks sit behind a longer plate which has a locating finger at the top (which goes through a hole in the body) and a thumb-press area at the bottom.  Pressing on the bottom end of the plate rocks it a bit, and accomplishes the manual tension release.

Here are pictures of the two machines, my VS3 first, and then the B&L:

cmp1_vs3_face.jpg cmp2_wettina_face.jpg

Behind the faceplates, things are similarly identical, but for one small part. Again, the VS3 photo is first:


The next two photos show the B&L, first with its presser foot down, and then with the presser foot raised up.

cmp4_wettina_tensioned.jpg cmp5_wettina_released.jpg

You can see the extra arm of bent wire on the B&L. When the presser foot is raised, the inner edge of presser foot lift lever (barely visible behind the bottom of the presser foot bar) pushes against that piece of bent wire, and, rocking on its pivot in a hole in the casting, it in turn pushes on the locating finger of the tension assembly. And that, of course, releases tension on the disks.

So basically, by drilling one hole in the casting, and bending up a coat hanger (that’s what it looks like!) to act as a tension release arm, B&L were able to very simply add a very desirable feature to their machine. Clever! It’s so simple that it might even have been introduced after the initial release of the model. (Singer added a tension release mechanism, implemented differently, when they came out with the 127/128 machines.)


updated just two weeks after buying

It did clean up nicely. But I decided that while I could maybe use this machine as a further exercise in learning to strip and repaint a machine, even if it came out well (unlikely!), it would still just be a poor cousin to my lovely VS3. So I passed the Wettina on to a new owner, who seemed pleased.





1926-1950 Singer Model 20 Toy Chain Stitch (no.2)

written December 2019 [index] [index by age]


This model 20 was given to me by a good friend – it had belonged to her aunt as a child. It’s in very good condition, with just some light surface rust which will likely clean up nicely. There are no serial numbers on these machines, so it’s hard to date exactly. The Model 20 from 1910 to 1950, but various changes were made over time. In particular, this one is stamped with numbers to make threading easier. That puts it at least at 1926.

Before cleaning:

model20_no2-1.jpg model20_no2-2.jpg model20_no2-3.jpg model20_no2-4.jpg model20_no2-5.jpg

And, a week or so later, after cleaning:

model20_no2-10.jpg model20_no2-12.jpg model20_no2-13.jpg model20_no2-15.jpg





c.1864 Willcox & Gibbs w/ glass tension

written in very late December 2019 [index] [index by age]


I’ve always figured that eventually I’d find a glass-tension W&G machine (which were made before 1875) someday. These poor photos of a forlorn machine enticed me to drive much too far (9 hours round trip!), in order to give it a proper home:

wg_glass_seller-1.jpg wg_glass_seller-3.jpg

Okay, I did get a few more pictures from the seller before setting out, but they weren’t much better!

I knew the machine was a Willcox & Gibbs, and that it was made sometime between 1858 and 1874. The rest of my W&G machines all have the “automatic tension” mechanism, which was introduced in 1875. Prior to that, the thread tensioner was of a relatively common design, with the thread passing between two spring-loaded disks. Those disks are usually made from polished steel, but on these machines, they were made from glass.

I could tell from the seller’s other photos that the glass disks were intact, and that the machine looked to be complete, if a bit (!) rusty. And it was on what was clearly its original treadle base. When I finally saw the machine in person, I was more than happy to see its serial number (46119) which places it in 1861. However, the cloth plate bears (and “bares”, after all the rust is removed) a “last patent” date of March, 1864, which makes the claim it was made that year somewhat suspicious. So I’m calling it “c.1864” instead.


There’s a fair amount of surface rust, especially on the cloth plate, where it’s pretty thick. But the machine turns over, sluggishly. wg_glass-2.jpg wg_glass-3.jpg

Plus, it looks like someone painted it. Maybe a couple of times, since there are two layers chipping off. Maybe the paint helped protect it from rusting? Hey, always looking for a silver lining! They even painted the glass disks. wg_glass-4.jpg wg_glass-1.jpg

Happily, the treadle escaped the repainting. Both the irons (including the wooden pitman) and the table top are in pretty good shape. The top is made from a single solid piece of wood. From the W&G sales brochures, it’s would have been black walnut or mahogony, and I’m thinking it’s the former. The treadle’s drawer is missing sadly. (I’m not surprised. Drawers always go missing for some reason.)

wg_glass-9.jpg wg_glass-11.jpg

The only pieces missing (that I’ve noticed so far) are a) the treadle drawer, and b) the two screws that hold on the cloth plate. The good news is that the threading for those screws is the same as for newer machines, and I happen to have an extra pair. The bad news is that the newer screws won’t quite work: they have a flat body between the head and the threaded region. The old screws must be threaded the whole way up, because the female threads in the body come all the way to the top of the hole. The flat body of the screw keeps the screw from going all the way in. I can think of a couple of ways to fix this – just need to think about it some more.

updated a few days later

On the last day of 2019 I had a few hours to kill, so I finished up (the first pass of) the paint removal and cleaning. Since reassembling I’ve noticed a few more spots with paint that I missed – I guess I was in a hurry.

But it looks pretty good, especially if you compare to the “before” pictures above. This was all accomplished with Citristrip Gel paint remover, Evaporust, #0000 steel wool, a couple of different brass wire wheels, and some elbow grease.

wg_glass-30.jpg wg_glass-15.jpg wg_glass-16.jpg wg_glass-17.jpg wg_glass-18.jpg wg_glass-20.jpg

The cloth plate even cleaned up enough to show a last patent date of March of 1864. The table in Grace Cooper’s book says this serial number was built in 1861, but the table is only an approximation. It’s far more likely that this was built in 1864 or 1865. wg_glass-22.jpg

The paint on the machine isn’t great. I think there wasn’t much paint left when someone primed and painted the whole thing (including all the metal bits that I had to strip it from during cleaning). But, like all my machines, “it is what it is”. It led a hard life, but it’s still mostly whole, and I like it just fine like this. wg_glass-21.jpg

Oh – Did I mention that it sews? :-) That’s always the best feeling…

updated a week later

The treadle irons were rustier than most I’ve had to deal with, but most of the paint was intact and solid. Repainting was definitely not necessar, but I was a little worried. I dismantled these irons, the first time I’d done that on any machine. That let me do some light brushing with a brass wire wheel and some scrubbing in soap and hot water. wg_glass-34.jpg

Then I took it all outside (sunny and 64 degrees in mid-January!?!), wg_glass-38.jpg

where I cleaned a bit more with Orange Glo, and waxed with Howard’s Feed ‘n Wax.

These comparison pictures shows one side waiting for those last two steps, the other side finished. The wet gloss will fade a bit as the wax dries. This sort of proves that repainting isn’t always the necessary.


wg_glass-36.jpg wg_glass-37.jpg

The treadle top responded really well to sanding (quite a bit of sanding – there were some deep stains) and Danish oil. It has some bad cupping (concave by about 1/4” in the center), but I don’t think there’s much I can do about it. There were some ancient cardboard shims under some of the screws when I disassembled, so I think it’s been cupped for a long time. That, and the existing splits in the wood, make me not want to stress it in any way.

wg_glass-40.jpg wg_glass-41.jpg wg_glass-42.jpg

Interestingly, it wasn’t until I got it all back together that I realized how small this thing is. It’s the treadle top is only 27-1/2” high, which is 2-1/2” less than most of my other treadles. It’s also smaller in width and length than any of the others.





c.1874 Johnson, Clark & Co. Home Shuttle

written in early February, 2020 [index] [index by age]


This nice little “Home Shuttle” sewing machine comes from the same folks that produced my Gold Medal chain stitcher and my Gold Medal Home, out in Orange, Massachusetts. In fact the Home Shuttle and the Home were both designed by Stephen French. (The Orange Massachusetts Historic Society, which I’ve visited, is housed in Stephen French’s former home.) It was made sometime between 1868, when French patented the design, and 1878, when the company switched to producing the first New Home machines. The Gold Medal Sewing Machine Co. and Johnson, Clark & Co. were very intertwined: incorporated separately, but comprised largely of the same individuals.

As its name implies, although small, this isn’t a chain stitch machine – it uses a proportionally sized shuttle and bobbin.

As an aside, French’s patent actually describes a machine whose shuttle moves front to back in a straight line (known as a “reciprocating shuttle” – if it went side to side it would be “transverse” shuttle). What they actually built was a machine where the shuttle travels in an arc, which is known as a “vibrating shuttle” machine. VS machines were relatively new at the time.

As a second aside, French’s original 1868 patent was reissued in 1880, in a much more rigorous form. By then, the earliest New Home machines were in production, and this model had been retired. But aspects covered by this patent show up in the Gold Medal Home, and perhaps also in the early New Home machines.

I’m still trying to figure out if this is an early or late machine. It has no serial number, which points to “early”, but most of these machines have a much simpler sheet metal faceplate, which might point to later. My theory (unfounded, as usual) is that they were experimenting with covered faceplate designs for the Dolly Varden model of the machine when they made mine. The serial number (and company name!) would normally have gone on the sheet metal faceplate, and they hadn’t yet made plans for moving it. So my machine, and probably others, went out without identification.

The mechanics seem fine, and the floral designs are very well preserved. The most obvious missing parts are the tension assembly (they were missing on the Gold Medal chain stitcher, too) and the crank axle bolt. The tension elements are relatively easy to recreate. The crank bolt might be a little harder. We’ll see.

home_shut_9.jpg home_shut_11.jpg home_shut_12.jpg home_shut_14.jpg home_shut_15.jpg

updated a week later

Disassembly is always fun, and a little messy.

home_shut_30.jpg home_shut_31.jpg home_shut_32.jpg home_shut_33.jpg home_shut_34.jpg home_shut_35.jpg

The cleanup went well, especially for the metal parts. They’re always relatively easy, but I’ve finally discovered the magic of using metal polish to get the last of the brown stains off of plain steel parts. I’d always thought that if steel wool wasn’t taking a stain off, that it just wasn’t coming, and was a permanent part of the finish. But I think what I’ve been doing is simply burnishing the tarnish (rust?) to a dull glow. I’ve used metal polish on brass parts before, but had never really tried it on steel. This time I tried it, and… Magic! home_shut_shiny.jpg

(Getting that gear really clean exposed the poor quality of their castings. Pits like that show up on some other pieces as well.)

Something else metal-related: sewing machine manuals always warn about running a machine without cloth, with the presser foot down, because “damage to the presser foot may result”. Now, I don’t do that often, but I’ve never seen a hint of a problem. But clearly someone did that quite a bit on this machine, and perhaps we’ve made some advances in metallurgy in the last 150 years: home_shut_presser.jpg

I mentioned that it was missing a hand crank axle bolt. I realized that that bolt is (or, should be) identical to the crank axle bolt on my Gold Medal chain stitcher. The two machines were made by the same folks, around the same time, so it’s not too surprising. That made it easy to verify all of the dimensions, including the thread diameter and pitch. And true to form, for a machine that’s 150 years old, it’s 21 threads per inch. Not a typo: 21. Not going to find that at the hardware store.


Until I can find or make (?) a replacement, I need a way of holding the crank on. So I took advantage of the fact that a 1/4”-20 screw gets about 3 or 4 threads of purchase before binding up in the 21 tpi hole, and made an ersatz shoulder bolt of the right length, using some aluminum tape to build it out to the right thickness (about 23/64”).


After a full disassembly and cleaning and reassembly, the machine now looks like this:

home_shut_21.jpg home_shut_22.jpg home_shut_23.jpg home_shut_24.jpg home_shut_25.jpg home_shut_26.jpg home_shut_27.jpg home_shut_28.jpg

I’m pleased. Next up is making a replacement for the tensioner, setting the timing, and making it sew!

A couple of days pass…

I’d read that the Home Shuttle takes a 12x1 needle, like my Singer New Family, and my Gold Medal Home – which was also designed by Stephen French, so it might have made sense. But the 12x1 didn’t fit at all (too slender), so I tried a 15x1, which works in a surprising number of machines that predate its development. That’s because they all really want a 20x1, which is the same, but just a little longer. So if you drop the 15x1 before tightening the needle clamp, it works. I doubt Singer realized this when they brought out the Model 15, but it sure is convenient.

Threading the shuttle was exactly per the manual. Pictures attached. First you run the thread under the brass bar and out the hole behind, then back in, above it. That’s a lot easier than trying to feed it from underneath if they hadn’t provided the hole! Then you run it out the rearmost hole on the other side, in through another, and out through the central hole below the slot.

home_shut_40.jpg home_shut_41.jpg home_shut_42.jpg

In a fit of impatience, I simply took the borrowed the tensioner that I’d made for the Gold Medal chain stitcher and put it on this one. And then I set the timing. The the top shaft has a flat for the gear’s setscrew, so there’s no adjustment there. To adjust the needle/shuttle timing you loosen the lower gear, and you adjust the feed dog timing by loosing the cam at the other end of that shaft.

After iterating on the above a few times, it sews!


But it needed its own tensioner, so I took my raw materials, and made one. (Apparently the Home Shuttle might have had either a disk or pulley style of tensioner. I know how to make the pulley style, so that’s what it gets!) The pulley was mounted to my drill press, and the valley deepened with a round file. The threads on the shaft on the machine are non-standard. By taking a modern thumbnut and drilling out most of the threads, and then re-tapping to a different size to further desecrate them, I was able to then force it onto the mismatched shaft, where it’s now perfectly adequate for adjusting tension. (If not the least bit authentic! :-) Suspending the shiny new brass parts over some vinegar in a sealed container for a few hours adds tarnish, and takes the “look at me I’m brand new shine” off of them.

home_shut_tensioner1.jpg home_shut_tensioner2.jpg home_shut_tensioner3.jpg





1887 Singer Model 24

written February, 2020 [index] [index by age]


The Singer 24 is one of those machines that I knew I’d have someday. After all, they built it to compete with the Willcox and Gibbs chain stitchers, and I have 5 of those! Like the W&G, it had a long run: it was made from 1887 through to the early 1950s, and it was sold into both domestic and industrial markets. (It uses a Gibbs-style rotary hook to form a chain stitch.)

A friend found this one for me in a thrift shop where he was shopping for axe heads. I guess we all have our collecting quirks. ;-) (Thanks Tom!!)

singer24_14.jpg singer24_15.jpg

One curiousity of this particular machine is that the serial number is in a different place than any other model 24 I’ve seen. The number is usually on a raised area on the back of the pedestal. For days I didn’t think it had a number at all, until I finally disassembled the tensioner, and there it was, behind the wire thread guide. singer24_24+25.jpg The serial number (7719128) dates it to 1887.

Another curiousity of the machine is that the tensioner itself is different than any other machine I’ve seen. An internet friend sent me images of her slightly younger 1887 model 24, and those pictures confirmed that sometime in 1887 Singer a) moved the s/n to the rear of the pedestal where it’s usually found, and b) changed the style of the tensioner. It’s still automatic (some later machines were fully manual, with a familiar thumbscrew and disks), but it’s different in appearance than mine. It does retain the same screw and locknut on the rocker arm in the rear, for adjusting the automatic tension. Her machine looks like this page from an 1895 (I think) manual, except hers does not have the little window in the cloth plate for the stitch length readout. singer24_1895_tension.jpg

Given it’s an early 24, you’d think it might be a 24-1. But every model identification guide I’ve found for the 24 says that the 24-1 has manual tension. While this machine is a lot like a 24-1 in most respects, it’s earlier than that – I have copies of manuals from 1890 and 1895, and neither mensions a model number – just “Automatic chain stitch sewing machine”. So I’ll just call it a Model 24.

The machine has the usual patent date on its cloth plate. It’s only partially legible, due to pitting from rust, but the web tells me it reads April 13, 1886. That single date actually represents two patents from the same inventor, both assigned to Singer. US339623 is for the automatic/intermittent tensioner, necessary for a good chain stitch, and US339624 is for the feed mechanism, which is positively driven (no springs) in all four directions of its motion. This is no doubt to allow for higher speeds. (A manual I found for a slightly later variant of the model 24 says the machine shouldn’t be run faster than 2000 stitches per minute. That’s pretty fast.)

singer24_13.jpg singer24_17.jpg singer24_18.jpg singer24_21.jpg singer24_23.jpg

updated a few days later

It turns out it only takes three muffin trays to hold a Singer 24. It all came apart nicely. One screw (one of the cone bearings for the upper oscillating shaft) took some soaking in PB Blaster, and some warming up, but it submitted in the end. singer24_apart.jpg

and after another couple/few days…

The Evaporust, and the ultrasonic cleaner (using Simple Green HD), and the Wrights polish have done their work yet again. Of course, in photography, lighting is everything. It doesn’t really look as good as this in real life. :-)

singer24_45.jpg singer24_44.jpg singer24_46.jpg singer24_48.jpg singer24_49.jpg

Even the underbelly is kind of shiny now…

singer24_30.jpg singer24_40.jpg

I borrowed a 24x1 needle from one of my Model 20 toy machines, and after a bit of adjustment to the automatic tensioner, it sews nicely at all stitch lengths. I’m looking forward to sewing with it more than 1/3 of a stitch at a time, which is all I can muster turning the balance wheel by hand. I’m hoping to make an adapter board that will let me mount this machine on my Willcox and Gibbs treadle base.

Working on this machine, I’ve come to realize what’s really interesting about it, in a historical sense. In the Model 24, Singer pretty much copied Willcox & Gibbs wholesale – some model variants, later than mine, duplicate practically the whole W&G threading path, including the funky spring-loaded takeup post.

This copying is really sort of unusual. Singer was the Big Boy. In general they didn’t need to copy – everyone else copied them. They designed the Singer New Family in the 1860s, and there are still German clones to be found everywhere. They built the VS2/VS3/128 machines in the 1890s, and clones of those can be easily found. And their long-lived model 15 is probably the most copied machine ever.

So maybe they deserved the chance to leverage someone else’s engineering for the Model 24, for a change.

…and yet another couple of days go by…

Making a machine sew by turning the balance wheel 1/3 of a stich at a time is a little unsatisfying. Makes for a slow test seam!

I was planning on making use of my W&G treadle base, and making an adapter plate to go between the 24 and the treadle top, but then I realized that the belt angles were going to be such that even raising the machine just 3/4” would cause the belt to rub on the ends of the slot in the table.

So I went wandering around the house and realized that my Wheeler and Wilson No. 8 treadle would work really well. Not only is the wheel on the outside of the leg, so the belt isn’t stuck behind the pitman when there’s no machine installed, but making an adapter base was trivial. I used a scrap of 1/2” plywood.

I’d read about using aquarium tubing or screen door spline as belts, but then found some Tygon (fuel/oil resistant) silicon tubing I bought for the chain oiler I built a few motorcycles ago. It’s perfect. I joined it with a short section of the threaded part of a nylon screw. The tubing was 1/4” O.D., 1/8” I.D., and the screw was probably a #8. And the tubing is lovely, don’t you think?

singer24_51.jpg singer24_54.jpg

I had adjusted the tensioner the other day, and today the machine sewed perfectly, on both long and short stitches. singer24_52.jpg

It’s a little odd though: the needle, which isn’t bent, rubs on the side of the hole in the needle plate. And the feed dogs, which aren’t adjustable, hit the bottom of the cloth plate when they come up, and actually lift it a bit. I don’t think the cloth plate is bent, but perhaps its been tweaked a little. In any case, I won’t be doing much sewing with it – some of the cross-supports that define the holes for the feed dogs are broken and/or missing. Definitely don’t want to damage it further.





1877 Davis Low Arm Vertical Feed

written March, 2020 [index] [index by age]


I luckily spotted this Davis on FB Marketplace after it had been listed for a couple of days. I think if the ad had mentiond “Davis”, or if the lead picture had been of the machine, instead of the closed-up treadle cabinet, it might have been gone already. Though it’s hard to say, I guess. Antique sewing machines don’t exactly fly off the shelves!

The machine is in excellent shape.

davis_lavf_01.jpg davis_lavf_11.jpg

It came with both drawers full of “stuff”. Happily, some of that “stuff” was original Davis attachments, and a packet of 8 new Davis needles! The rest of the “stuff” was an eclectic mix, as usual.


The woodwork is good, except for the finish, which is… challenged. You can see that much of the shellac has failed. The large flat surfaces will be relatively easy to strip and refinish, probably with oil. The fussy details on the corners of the bonnet top will be a nuisance. davis_lavf_15.jpg davis_lavf_16.jpg

The irons are in excellent shape, including the fairly delicate and suprisingly complete bobbin winder. Some of the original painted decoration is even still there. davis_lavf_05.jpg davis_lavf_06.jpg davis_lavf_seller_3.jpg

The serial number of 89791 implies 1877. On the underside of that slide plate W.H. Ohler from Portland, Maine stamped his name. And below that, easier to read after I cleaned the crud off after taking this picture, are the digits “79 3 27”. It’s likely that Mr. Ohler either worked on or sold (more likely) this machine on March 27, 1879. I say this because there’s an announcement for his sewing machine business in an 1872 edition of the Portland Daily Press! davis_lavf_07.jpg davis_lavf_08.jpg portland_daily_4-12-1872.no_resize.jpg

The decoration on the bed is interesting, in that it seems to be inset, or recessed, into the japanning. It’s especially evident in the center, where all of the colored paint (?) is gone, but you can also see it a bit where it’s still present. I’ll have to research how this might have been done. davis_lavf_19.jpg davis_lavf_21.jpg

Because of the walking foot design of the Davis “Vertical Feed” machines, the undercarriage couldn’t be simpler. A vibrating shuttle at its simplest. davis_lavf_25.jpg

updated a week or so later

The area behind the faceplate, though – whoa, that’s a lot of sliding bars! davis_lavf_28.jpg davis_disass_01.jpg davis_disass_02.jpg davis_disass_03.jpg

Much of the machine was pretty clean, but some was really cruddy. This hanger rod is a little hard to get to for cleaning, so I think it had been accumulating crud for the machine’s entire lifetime. It all came off though – see the part all shiny in the “exploded” parts picture, below.


I polished the hand wheel, as I often do with these machines, by mounting it on my drill press. A little steel wool and metal polish works wonders.


And here’s the obligatory “exploded view” picture. davis_parts_01.jpg

It went back together pretty well. I had some trouble getting the stitch length adjuster adjusted (!), and had to jury rig things a bit to be able to run the machine with the faceplate off.


All cleaned up. Next (someday!) comes the cabinet.

davis_cleaned_12.jpg davis_cleaned_13.jpg davis_cleaned_14.jpg davis_cleaned_15.jpg davis_cleaned_16.jpg

And it sews! This little video captures the unusual movement of the presser feet nicely. davis_cleaned_05.mp4

Cleaning and refinishing the Davis treadle

updated at the tail end of April

All that was left was the treadle stand – both the irons and woodwork.

I did do a minor repair to the pitman arm. The holes at the ends of the arm had worn to oblong. I could have gone to the trouble of boring out a new hole and inserting a bushing, which would likely outlast the rest of the machine. But I channeled Robert Pirsig, cut up a can, and shimmed it. Problem solved.

davis_lavf_30.jpg davis_lavf_33.jpg

The irons cleaned up quickly – as usual, I just used Orange Glo furniture cleaner, and Howards Feed ‘n Wax. Easy peasy.

Cleaning woodwork was harder. The shellac had completely failed in several places (there are some pictures above), and it was just bad overall, as you can see: davis_lavf_seller_2.jpg

So I decided to strip it. Based on recommendations on a woodworking site, I used plain 100% denatured alcohol (it took less than a quart, I think, total).

First I verified that it was shellac, using some alcohol on a test spot. It came clean quickly, so I knew I was on the right track. The steps went like this: I put some 100% denatured alcohol in small spray bottle. I spritzed a section generously, so it was all wet, then covered it with a paper towel, and spritzed that pretty well too. Then I covered it with a sheet of plastic (just the side of a plastic bag) to keep it from drying out, and put a heavy towel over all of it, to squish it all together. Then I did a crossword puzzle for 5 minutes or so.

When I pulled off the towel and plastic, I was able to use the paper towel to pull off most of the now-sludgy shellac. davis_lavf_31.jpg

A little more spritzing and a few more paper towels left it pretty clean – sometimes I used #0000 steel wool on an extra thick spot. After it dried out I sometimes had to go back and do a bit more, and I did sand the whole thing with very fine paper to finish it off.

I did remove the little “half-finials” on the front two edges, in order to make it easier to strip them. A bit of heat gun, and the hide glue released, and they came right off. Then they had to be glued back on.


After all that stripping there’s still shellac present, of course, down in the pores, so the surface is still fairly “sealed”. I was worried oil might not work well on that (excessive drying times?), but I use Watco Rejuvenating Oil on just about everything, and this was no exception. It worked fine.

To say I’m thrilled with the results is an understatement.

davis_lavf_34.jpg davis_lavf_35.jpg davis_lavf_37.jpg davis_lavf_36.jpg davis_lavf_38.jpg





1878 White VS1

written June, 2020 [index] [index by age]


This White VS1 (s/n 78129) was on listed on Facebook for many months. I inquired about it at some point, but couldn’t convince myself to get it, and I had some other projects at the time. A month or two later, I had finished those projects, so I got back in touch. When I asked whether the price was flexible, he dropped it in half! Hard to argue with that. Besides – White was one of the major builders of sewing machines, so I should have one, right?

I still may have paid too much (well, not really), because the bonnet top has been dropped and is now in many pieces (not all of them present, sadly), and the top layer of paint on the machine head is flaking off in places.

On the plus side, the bonnet may be repairable, and its front is burled, much like my Davis. The cabinet is in pretty good shape with all its drawers, and the machine itself appears to be complete. The shuttle and bobbin are present, in a drawer. (Whew.) There are even some attachments. And are faint traces of the original decals left in just a few spots.

white_vs1_02.jpg white_vs1_03.jpg white_vs1_05.jpg white_vs1_06.jpg white_vs1_07.jpg white_vs1_08.jpg white_vs1_10.jpg white_vs1_11.jpg white_vs1_16.jpg white_vs1_17.jpg white_vs1_20.jpg white_vs1_21.jpg white_vs1_22.jpg





Treadling a Featherweight

written June 2020 [index]

Some folks on the ISMACS mailing list were talking about whether it was possible to treadle a Singer Featherweight, and there was so much negativity that I just had to try it. :-)

I used the treadle base from my Wheeler and Wilson #8. I’d already made an insert for it when testing my Singer 24, so it was the obvious choice. Plus the large treadle pulley is conveniently to the outside of the leg, so swapping belts is easy.


The Featherweight wasn’t fastened to the table for this test – I think that at most it might need some way to keep it positioned, but it actually seemed pretty solid. The belt is urethane belting, which is cut to length and joined with heat. It happens to be very “slippery”, so I didn’t feel I was going to damage the treadle top with the obvious rubbing.

treadling_featherweight_01.jpg treadling_featherweight_02.jpg

The pictures show that a guide pulley should clearly be used on the rear portion of the belt, to prevent rubbing on the table. They don’t show quite as clearly that the belt is also rubbing on the front corner of the machine’s pulley guard. It might be possible to eliminate that with another guide pulley, which would pull the front (downward-moving) portion of the belt several inches to the rear. But this was all just proof-of-concept. I don’t like sewing on my Featherweights nearly enough to want to treadle them. Their motors work just fine!

I actually had more trouble remembering to install the needle “backwards” and to thread it right to left than I had getting the machine to treadle. This short video shows it in action:

treadling_featherweight.mp4





1947 Singer Model 201-2 Family

written late June, 2020 [index] [index by age]


This is my third Singer 201-2 (but the first I’ve paid for). I sold the first one when I thought I was out of space for more machines (I’ve since found a lot more space, and machines to fill it ;-), and regretted it immediately. It didn’t help that it turned out I’d sold a perfect, all-original machine in its original cabinet to a guy that was going to separate them and just ship the head off somewhere, probably overseas. The second one I rescued really wasn’t a good machine – lots of cosmetic issues, and so it, too, was sold. (At least that one was to a nice guy who had just started taking sewing lessons.)

This one (s/n AH367267) is in a solid art deco cabinet. After dealing with a serious thread jam under the bobbin, it seems to run fine. It had an amazing amount of junk in the drawers.

201-2_no3_10.jpg 201-2_no3_01.jpg 201-2_no3_02.jpg 201-2_no3_09.jpg 201-2_no3_11.jpg 201-2_no3_15.jpg 201-2_no3_04.jpg 201-2_no3_07.jpg

updated September, 2020

The machine head didn’t need much, but it had the usual yellow coating on many parts (I suspect that can of 3-in-1 oil pictured in the drawer, above, is to blame), and grime and lint everywhere. So it got the usual spa treatment.

201-2_no3_13.jpg 201-2_no3_20.jpg 201-2_no3_21.jpg





Refinishing the Singer #42 Art Deco cabinet


The cabinet, unlike the sewing machine head, needed more work than I realized. In addition to the obvious plant and mug rings, and generally failed shellac, it turns out it must have been stored in a damp area, and perhaps was even flooded at some point. Much of the veneer along the top and bottom edges had separated, and in half a dozen places at floor level it was missing entirely.

201-2_no3_cab_01.jpg 201-2_no3_cab_02.jpg 201-2_no3_cab_03.jpg

So first there was a lot of clamping, to reattach the loose stuff. Most of it was only loose to a distance of an inch or so from the edge of the piece, which meant there wasn’t a lot of flex to allow getting glue in there. I used a very thin (.008”, IIRC) automotive feeler gauge as a trowel to get glue into that narrow gap. I used Tite Bond hide glue (brown bottle) on this project, to try it out. It takes longer to set than Elmers (so the clamps needed to stay on much longer), but I knew I’d be able to loosen the veneer again, with heat, if I screwed up. 201-2_no3_cab_04.jpg

Once all the undamaged veneer was solidly attached, I had to learn how to do patches. This was new to me. Luckily there were a couple of places in hidden areas of the cabinet’s interior where I could “harvest” patching material. This was easy: I used a utility knife to outline the area of veneer I wanted to remove, and then heated the area with a heat gun. Once warmed up, I could get a very thin blade under the veneer and peel it off.

For some patches I cut back the old veneer to a reproducible shape, and cut a matching patch. For others, I used a “pressing” technique where you use a clamp covered in thick felt to press the patch into place. This lets it conform exactly to the cut out area, and minimizes the glue-filled gap. I learned that trick from a Popular Woodworking youtube video. (If you watch the video, take note that they cheat heavily, by using what is clearly a piece of the very same veneer that’s damaged, in order to make the patch. No wonder it matches so well at the end!)

201-2_no3_cab_06.jpg 201-2_no3_cab_07.jpg

201-2_no3_cab_13.jpg 201-2_no3_cab_16.jpg You’ll notice I did manage to damage my patch. I was too impatient to fix it. (Remember that thing I said about using hide glue, so I could fix veneer mistakes? I should know myself better than that!)


This patch worked very well, which is good because it’s prominent, right at the front of the cabinet – it’s the same spot pictured in the first “missing veneer” photo, above. It was easy to do well, since I patched the whole way across the 2” vertical span. 201-2_no3_cab_17.jpg

Once the veneer was patched, all the finish needed to come off. Sadly, I don’t have any pictures of the stripping operation. Wearing rubber gloves covered in chemical stripper and old shellac muck makes it hard to use one’s camera! I used a product recommended by a friend, called Kwik-Strip Paint & Varnish Stripper, which worked well. Applied it with a brush, waited for 5 minutes or so, then wiped off the sludge with a lot of paper towels. (They say to wait longer, but I found it dried, and was hard to remove, if I did that.) Then I used a spritz bottle of 100% denatured alcohol several times as a “rinse”, with more paper towels, to remove the remaining “shellacky” residue. When I refinished my Davis treadle, I only used the alcohol. I tried that on this cabinet, too, but for some reason it didn’t work as well. Perhaps the shellac was thicker, or maybe I needed to sand it before starting, to remove whatever waxes or oils had been applied over the years. In any case, using just alcohol means covering the area with plastic while it works, and that would have been harder on this cabinet.

When all the obvious finish was gone, I sanded first with 150 grit, then with 220. I was able to use an orbital palm sander for most of it, and a sanding block anywhere else, like up against the handles, or on curves.

The original finish on the cabinet was designed with a small coloring detail for some of the edges, and for the handle trim. I wasn’t going to recreate it, but it turned out that while it was just coloring in the (now removed) shellac in some places, in others it was real wood stain, so I had to do something. It took me a couple of tries to get it right – in the end those areas got a mix of cherry and walnut stains. The rest of the cabinet was left natural. It’s all pretty subtle, which is fine by me. It was subtle originally, too. (The original Singer finish had a 2” band of darker color all around the base. I chose not to recreate that.)

By the way, after you oil your wood, stained or not, will change color drastically. That’s important to rememeber when choosing a stain. The trick to getting a preview, without applying oil (which you don’t want to do, since it soaks in), so to wet the wood with mineral spirits instead. It will wet/darken the grain just like the oil, but will dry out and disappear in an hour or two.

201-2_no3_cab_23.jpg 201-2_no3_cab_24.jpg 201-2_no3_cab_25.jpg

And then, finally, my favorite part – applying the Danish oil. I use Watco “Rejuvenating” oil, since I keep it on hand for our dining table. Regular Watco oil would surely work just as well. Apply it liberally – you don’t want it to dry out before you wipe off the excess with a fresh rag. If I see areas becoming non-glossy before I’m ready to wipe it, I add more. I use a clean rag to apply it – don’t use too big a rag, since it will just soak up and hold onto more of your oil. Let the surface stay wet for 5 to 10 minutes. If you wait too long it will turn gummy, and hard to wipe off. (If that happens, well, in the past I’ve applied more oil, but it might be there’s a better trick.) 201-2_no3_cab_26.jpg

I apply a couple of coats in relatively quick succession – say, an hour or two in between. Then a third coat the next day, and if it looks dry in a month, or a year, I’ll give it another. (This is rare, in my experience.) When doing repeat coats after a long period, I usually go over the surface with #0000 steel wool first, to be sure it’s clean. The rejuvenating oil claims it cuts through wax, but since I never wax furniture, I don’t know if that’s true.

My veneer patches turned out okay. Not even near perfect, but okay. I certainly should have used the same technique, and the same general shape, for all the patches, rather than the hodge-podge you see here. In the third picture you can see that I didn’t manage to get the grain aligned properly. Sigh! But see note above about impatience. Or maybe it’s laziness! :-) The patches are all down at floor level, so not that visible.

201-2_no3_cab_27.jpg 201-2_no3_cab_29.jpg 201-2_no3_cab_28.jpg

All done! 201-2_no3_cab_31.jpg 201-2_no3_cab_32.jpg

And in the end, I’m pleased.

201-2_no3_33.jpg 201-2_no3_35.jpg 201-2_no3_37.jpg 201-2_no3_31.jpg 201-2_no3_30.jpg





1884 Singer “Improved Family”

written late June, 2020 [index] [index by age]


This machine is in such “uninspiring” condition that there’s no way I’d have normally bought it. But it turns out that the treadle is relatively rare, only made for a few years in the 1880s. (The Improved Family head dates from 1884, s/n 6441861.) A couple of friends were interested, and since the seller was right on my route to where I picked up my 1947 201-2 (previous blog entry), I picked it up. It wasn’t free, but pretty close. After some discussion, I’ll be dismantling the treadle and shipping it and the bonnet top to California, rather than the friend in Ontario.

The Singer “Improved Family” is the direct predecessor to the Singer Model 15, and the family resemblance is strong. While most of the details are different, the overall design involving an oscillating shuttle holding a round bobbin, the front-mounted tension, the bulbous curvy body, are all similar.

Maybe someday I’ll get a prettier Improved Family – some have lovely delicate decals – but for now I can at least say I’ve played with one.

singer_if_seller_3.jpg singer_if_seller_4.jpg singer_if_01.jpg singer_if_03.jpg singer_if_02.jpg singer_if_05.jpg singer_if_06.jpg singer_if_07.jpg singer_if_08.jpg





Gang of four

written July 2020 [index]


Or, as my charming spouse likes to remind me, “One for the price of four!”.

I only wanted one of these machines, but the ebay sale was for all four. I have no idea what I’ll do with the others. Probably give them away.

It may not be obvious which one I actually wanted…

group_buy_four_1.jpg group_buy_four_2.jpg

group_buy_four_3.jpg group_buy_four_4.jpg





c.1872 American B.-H., O & Sewing Machine Co. Model ‘M’

written July 2020 [index] [index by age]


The full name of the company that made this machine is “The American Button-hole, Overseaming & Sewing Machine Co.”. Kind of a mouthful. As I understand it, they began in the late 1860s, in Philadelphia, and they made a machine that could make button holes, do overseaming, and also be converted to make a regular lockstitch. My machine, which seems to be from 1872 or 1873 (from comparing patent dates with other collectors machines), wasn’t one of the convertible machines.

american_02.jpg american_06.jpg american_07.jpg american_08.jpg american_10.jpg american_03.jpg american_04.jpg

An interesting feature of these machines is that they use a somewhat unusual vibrating shuttle. Rather than swinging in a broad horizontal arc below much of the cloth plate, this shuttle swings in a short vertical arc, all right below the slide plates.

The machine is sadly missing its shuttle and bobbin. These two pictures I found on the web show what I think it should look like. The pictured shuttle is from an American No.1, which was made at the same time mine was, which is why I think this is what I’m looking for. Of course, they seem to have used two different tension mechanisms inside the shuttle in that time frame, so I can’t be sure which I should have, and also don’t know whether that would affect the exterior design.

abho_sh_bot.jpg abho_sh_top.jpg

It’s not even clear exactly which model this is, since most have a very prominent “No.1”, “No.2”, etc. All I have is a letter ‘M’. And the number of ‘44’. Numbers that small are suspicious, but I’ve heard that American restarted their serial numbers with every new model, so it’s not out of the question. And I think many/most American machines have curved arms, not straight like mine. So for now, the ‘M’ stands for the “Mystery” model.

american_11.jpg american_12.jpg

updated early August, 2020

After some cleanup, and building a new (for me) kind of wooden display base, it looks kind of nice. I’ve started watching for shuttles on ebay and elsewhere, but my expectations are low.

american_20.jpg american_21.jpg american_22.jpg american_23.jpg american_24.jpg american_26.jpg american_27.jpg





c.1895 Atlas model ‘A’ / Bremer and Bruckmann “Brunonia”

written September 2020 [index] [index by age]


This elegant hand crank was made sometime in the late 1800s. The Atlas Sewing Machine Company (London) was in the business of reselling badged machines from other makers, and this was their first model. It is actually an “Original Brunonia A”, made by the company Bremer und Brückmann in Braunschweig, Germany. It is similar in some ways to the Howe sewing machines made in Connecticut, though of course those are have reciprocating (straight-line forward/backward) shuttles, rather than vibrating (swinging in an arc).

atlas_07.jpg atlas_01.jpg

The available history is scarce, but sources seem to say it was made from around 1876 to around 1900. There is a Brunonia on a German that site has a close serial number, and is dated to 1895, so mine (s/n 167527) was likely made around then.

atlas_05.jpg atlas_03.jpg

The shuttle is sadly missing, but I did some measuring, and checked all of my other VS machines, and found that the shuttle from my Davis fits almost perfectly! Pure luck. This machine will sew! Also, from pictures of other examples, it’s clear that the bobbin winder arm should be straight, without that backward bend. How the heck do these things happen? I hope it straightens without breaking. atlas_02.jpg

The seller’s photos on Ebay had been taken with some harsh lighting, and I wasn’t expecting much in the way of decals. Much is missing, but I’m pleased with what’s left.

atlas_08.jpg atlas_09.jpg

I won’t be doing a full disassembly on this machine right away, but I do want to display it. So it needed new feet, of some sort, to protect the furniture, since the old ones were shot. Want to see what a 125 year-old rubber foot looks like? Eww… atlas_10.jpg

The End (for now) [index]
